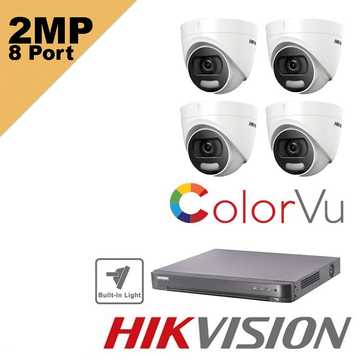

TVI 2MP ColorVu Turret Kit 20m DS-2CE72DFT-F 8 Channel
TVI 2MP ColorVu Turret Kit 20m DS-2CE72DFT-F 8 Channel
As a result, Hikvision ColorVu Cameras provide bright color video images 24/7 in low illumination conditions. They excel at capturing vivid chromatic images in a multitude of application scenarios, such as public places with no lighting, night security at industrial parks, traffic intersections in low light environments, and many more everywhere color information is particularly important.
Optional
- Hard Drive (if specified)
- Cables 20M Shotgun ready-made (if specified) - If you are after a bigger size please call in and we can arrange this.
- 4-way power supply - Please note you may need additional power supplies for the cameras as they are equipped with a white light.
2MP DS-2CE72DFT-F 2MP ColorVu Turret Camera, 20m White Light
DS-2CE72DFT-F is Hikvision's 2MP ColorVu HD-TVI full time colour turret camera. This camera boasts full time colour during day and night with a 2.8mm lens, up to 20m white light distance. The camera uses an ultra-low light sensor coupled with large aperture F1.2 lens and built-in white light to allow the camera to stay in colour even at night.
Hikvision - 8 Channel Turbo HD 4.0 (DS-7208HQHI-K1)
A low cost Hikvision solution for up to 8 camera systems. Up to 3 MP resolution for recording of the first 2 channels, 2MP (1080p of all other channels. HD-TVI/AHDCVI/CVBS (HD-AHD/CVI 1080p max) cameras supported. It also offers support for older CVBS standard analogue cameras. Simultaneous 1080p HDMI and VGA support with 4K resolution for the HDMI output.
Specifications
- 8ch video & 1 x audio recording channel
- CH 1 & 2: 3MP, CH 3-8: 1080P @ 12 fps, 1-ch IP video input (max 1080p res)
- HD-TVI/AHDCVI/CVBS (HD-AHD/CVI 1080p max) cameras supported
- H.264+ supported, reduces data storage requirements by up to 50%
- Motion record with masking & variable pre-alarm record time
- 4K HDMI digital video output works simultaneously with VGA
- 1 x SATA interface, up to 6TB max
- IVMS4200 Client software for PC & MAC supported
- Free Hik-Connect DDNS and P2P Cloud access
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Slow ShutterMax. 16 times
- Lens
- Lens TypeFixed focal lens, 3.6 mm and 6 mm optional
- Focal Length & FOV
3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0°
6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
- Lens MountM16
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 20 m
- Smart Supplement LightYes
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsAGC;Brightness;Sharpness;Mirror;Smart Light
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Wide Dynamic Range (WDR)≥130 dB
- Image EnhancementBLC;HLC;WDR
- Privacy Mask4 programmable privacy masks
- Noise Reduction3D DNR
- White BalanceAuto/Manual
- Interface
- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- Event
- Motion Detection4 programmable motion areas
- General
- Power
12 VDC ±25%, max. 3 W
*You are recommended to use one power adapter to supply the power for one camera.
- MaterialMetal
- DimensionØ 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")
- WeightApprox. 336 g (0.74 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- Approval
- ProtectionIP67
