4K DS-2CD2H83G0-IZS Outdoor WDR Motorized Varifocal Turret Network Camera
4K DS-2CD2H83G0-IZS Outdoor WDR Motorized Varifocal Turret Network Camera
Description

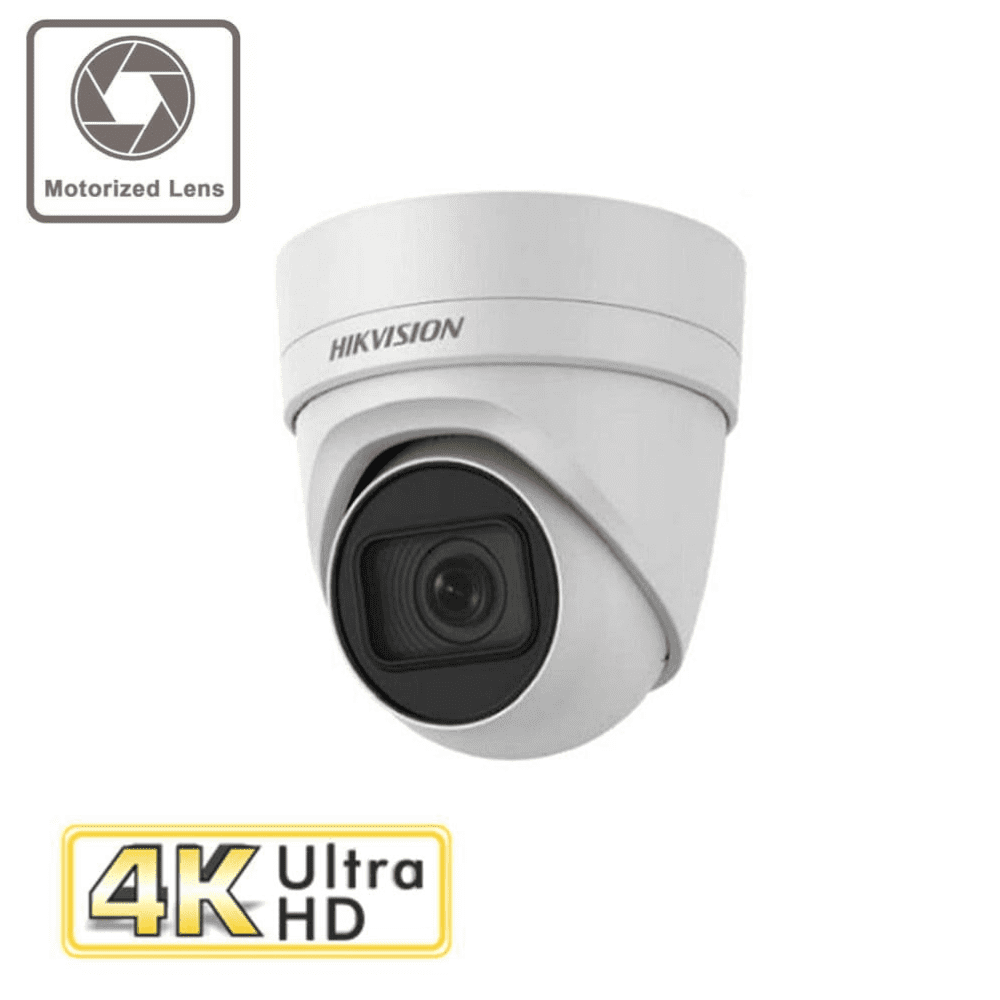

The Hikvision DS-2CD2H83G0-IZS is a 4K (3840 x 2160) turret camera that uses a motorised zoom lens with a 2.8mm to 12mm focal length.
It also has inbuilt infra-red LEDs that have a maximum distance of 30m along with IK10 vandal resistant housing and IP67 weatherproof housing making it a great choice for outdoor applications, day or night.
With the DS-2CD2H83G0-IZS's 3-axis adjust-ability, choice of mounting options and zoom lens, any area of interest can be easily covered making this camera really versatile and a popular choice for many of our customers.
This turret camera utilises a range of Hikvision's features to enhance images and security, for example, back light compensation (BLC), 3D digital noise reduction (3D DNR) and region of interest (ROI). Along with this, the DS-2CD2H83G0-IZS also uses a range of smart features such as line crossing detection, intrusion detection and object removal detection.
As with all cameras in the EasyIP 3.0 family, H.265+ video compression offers up to a 70% saving on storage and bandwidth over H.264 with minimal effects to image quality. This saving means that the DS-2CD2H83G0-IZS's SD card slot can be utilised without reaching maximum capacity too quickly.
This turret can be powered by PoE or a 12VDC power supply and has the ability to be accessed remotely via web browser or by using the Hik-Connect app.
Features
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP66) and vandal proof (IK10)
- Motorized vari-focal lens for easy installation and monitoring
- Robust structure design with full metal materials.
Specification
- Camera
- Image Sensor 1/2.5" Progressive Scan CMOS
- Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focus Auto
- Lens Type 2.8 to 12 mm, Motorized
- FOV Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
- Aperture F1.6
- Lens Mount Φ14
- Aperture Type Fixed
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Video
- Max. Resolution 3840 × 2160
- Main Stream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Scalable Video Coding (SVC) H.264 and H.265 encoding support
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Wi-Fi
- Encryption Mode Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
- Target Cropping No
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, face detection
- General
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current 12 VDC, 1 A, max. 11 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.3 A, max. 12.5 W
- Camera Dimension Φ 135.8 mm × 145.5 mm (Φ 5.4" × 5.7")
- Camera Weight With Package: approx. 1220 g (2.7 lb.),Camera: approx. 1060 g (2.3 lb.)
- Approval
- Protection IK10, IP67
