8MP 4K HIKVISION DS-2CD3387G2-LSU(2.8MM)(C) COLORVU IP POE WITH AUDIO - Free Base (Offer)
8MP 4K HIKVISION DS-2CD3387G2-LSU(2.8MM)(C) COLORVU IP POE WITH AUDIO - Free Base (Offer)
Note: Free Base Must be Chosen as an Option

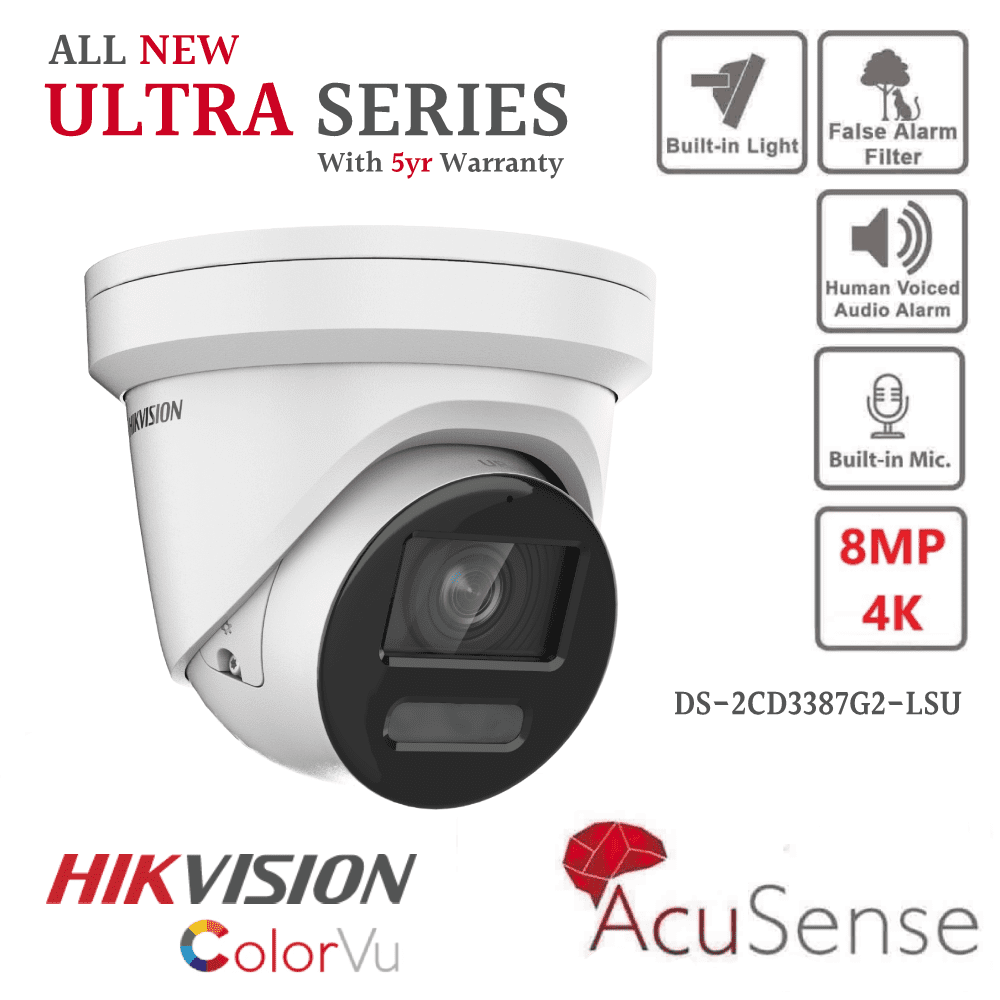

8MP 4K HIKVISION ULTRA SERIES - DS-2CD3387G2-LSU(2.8MM)(C) COLORVU IP POE CAMERA WITH AUDIO - 2.8mm
Features
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Built-in microphone for real-time audio security
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
Specification
- Camera
- Image Sensor1/1.2″ Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- Day & Night24/7 color imaging
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
- Lens MountM16
- Iris TypeFixed
- ApertureF1.0
- Depth of Field
2.8 mm: 3.1 m to ∞
4 mm: 3.6 m to ∞
- DORI
- DORI
2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*Third stream and fourth stream are supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed regions for main stream and sub-stream
- Target CroppingYes
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes
- Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- Power Output12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventUnattended baggage detection, object removal detection, scene change detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC, 0.47 A, max. 5.6 W
PoE: IEEE 802.3af, 36 V to 57 V, 0.18 A to 0.12 A, max. 6.6 W
- MaterialCover: metal, main body: metal
- DimensionØ138.3 mm × 120.1 mm (Ø5.4" × 4.7")
- Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
- WeightApprox. 910 g (2 lb.)
- With Package WeightApprox. 1190 g (2.6 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
- Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67: IEC 60529-2013
