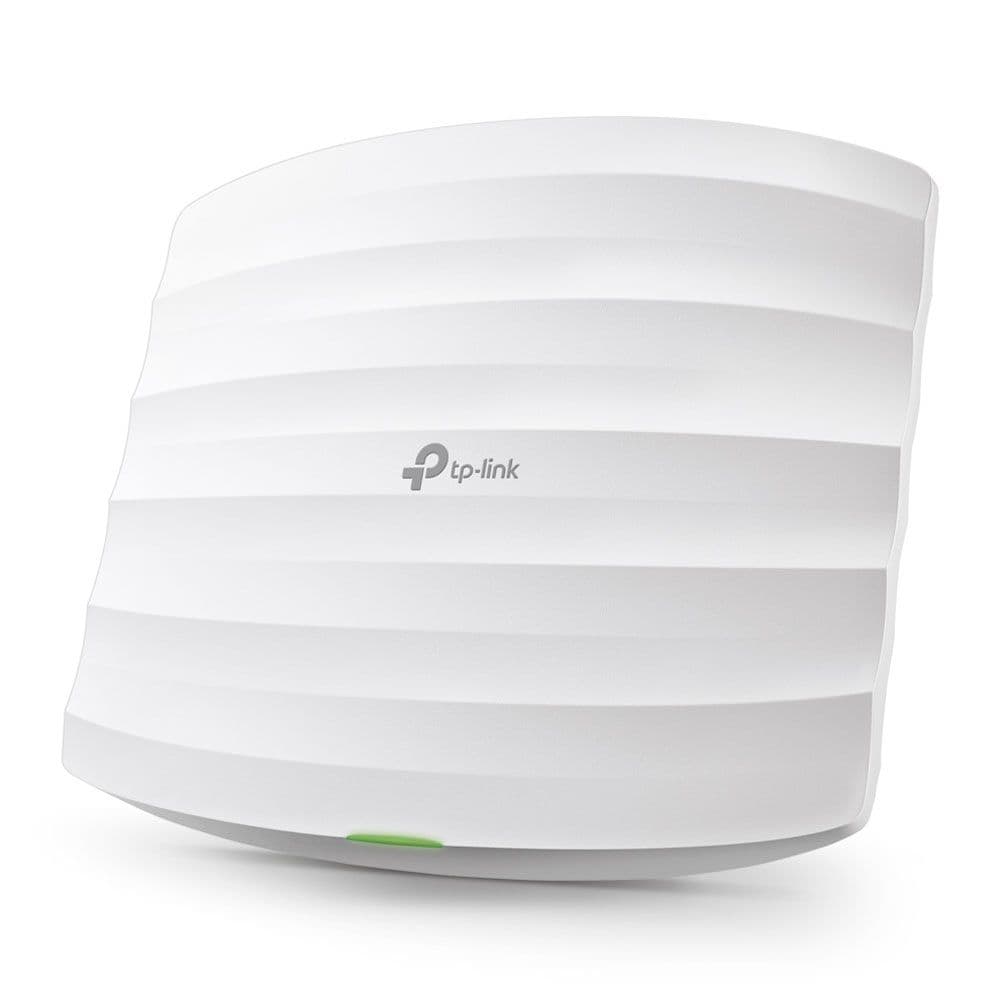

TPLink EAP225 AC1350 Dual Band MU-MIMO Wi-Fi Access Point

TPLink EAP225 V3 AC1350 Dual Band MU-MIMO Wi-Fi Access Point

Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Supports management VLAN for an enhanced network management
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Features

  Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE)
Button: Reset
Power Supply: 802.3af PoE or passive PoE
Power Consumption: 12.6W
Dimensions: 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type:
3 Internal Omni
2.4GHz: 4dBi
5GHz: 5dBi
Mounting: Ceiling /Wall Mounting (Kits included)
Physical Security Lock: Yes
Hardware Watch Dog: Yes

Wireless Features
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps

Wireless Functions:
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power:
=24dBm(2.4GHz)
=22dBm(5GHz)

Management
EAP Controller Software: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

Others
Certification: CE, FCC, RoHS
Package Contents:
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
Environment:
Operating Temperature: 0?~60? (32?~144?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
