PENTON IP AUDIO ENCODER/DECODER TERRA-IEX-2-G2

PENTON IP AUDIO ENCODER/DECODER TERRA-IEX-2-G2

TERRACOM SYSTEM The TERRACOM audio communication, messaging and intercommunication platform is a suite of products designed to transmit live audio paging, stored messaging, background music, 2-way intercommunications, control input/output triggers, and audio monitoring over TCP/IP.

The TERRACOM range supports POE (Power over Ethernet), and/or can be powered locally with external 24VDC power supply.

The network infrastructure of TERRACOM uses any existing network, and via a router will allow connection to the Internet for transmission and control. A built-in browser interface allows simplied control and program mapping of the TERRACOM devices, with the option of using Terra Manager or Terra Server for more complex applications.

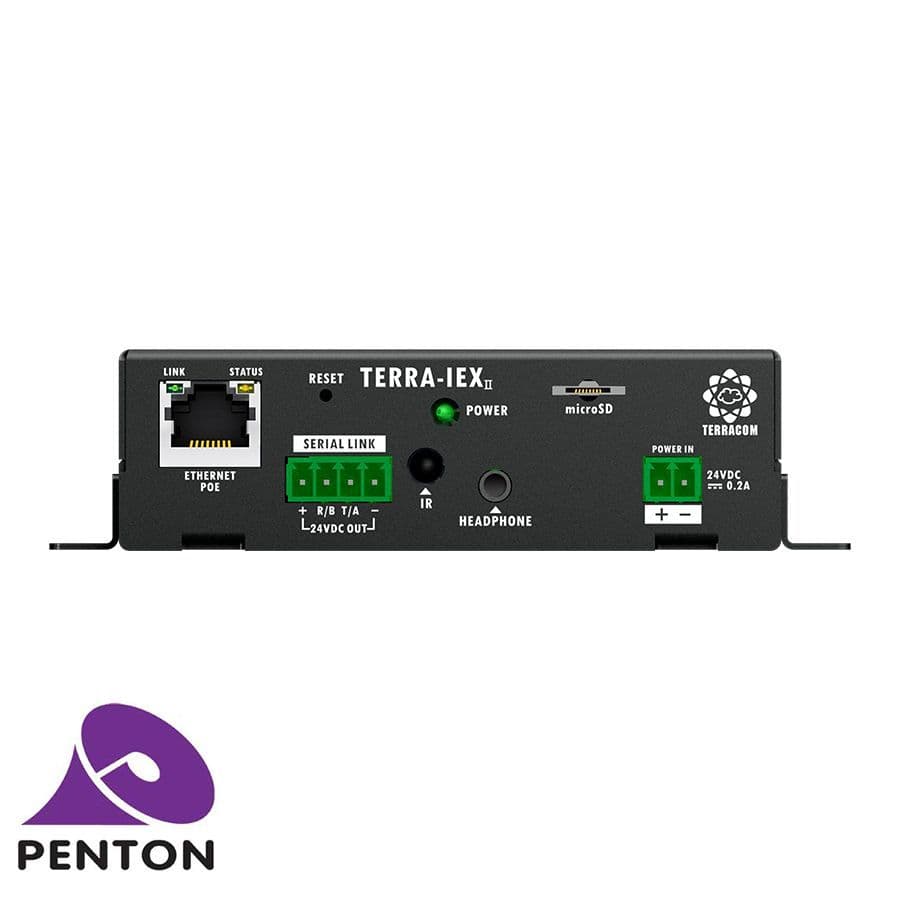

The TERRA-IEX is a 2 channel audio over IP encoder/decoder which operates as an audio source for an IP network. It comes with 2 independent balanced line outputs for full duplex communication for paging and broadcasting.

The TERRA-IEX is equipped with G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoder, paging with unicast, multicast, broadcast. The power is supplied via POE and/or an AC/DC power adaptor.

Features

• 2 Mic/line balanced inputs
• 2 balanced line outputs (1 stereo or 2 mono)
• 1 stereo line output (3.5 mm mini-jack) for headphone
• 1 optional S/PDIF digital transceiver
• Audio inputs/outputs: maximum level +5 dB, bandwidth 20 Hz ~ 20 kHz
• PoE or 24 VDC power supply (if PoE is not available)
• Support G.711, G.722, G.726, G.727, G.729, MP3 audio codec and AAC+ decoding
• Web browser interface for management and monitor
• SNMP (Simple Network Management Protocol) for device management on IP networks
• USB 2.0 interface for music/message storage, playback and recording
• Internal 80 MB storage for recoding, message storage
• Power LED and Status LED indicators
• 3 contact inputs and 1 contact output
• RS232 or RS485 for 3rd party control
• Power consumption: 3.12W
• Weight: 0.95 lb (430g)
• Dimensions (DxHxW): 4" x 1-1/4" x 4-3/10" (104 mm x 32 mm x 109 mm)
