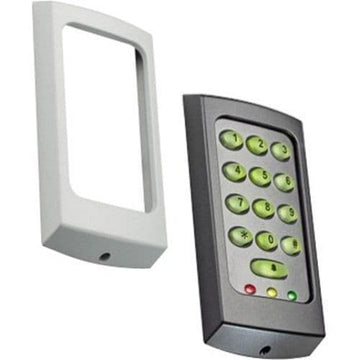

Paxton 371-210 TOUCHLOCK K75 Compact Keypad
Paxton 371-210 TOUCHLOCK K75 Compact Keypad
Paxton 371-210 TOUCHLOCK K75 Compact Keypad
TOUCHLOCK compact is a single door access control system. All of the electronics are within the housing of the keypad. Compact systems can be installed to many doors over a site. The K series keypads are supplied with black bezels that can be fitted in the final stages of installation. Replacement bezels are available in black and white/grey, and are free of charge to Paxton registered installers from the Extranet. Installation – The compact keypad has two wires which connect to the lock and two wires which connect to the power supply. There are two wires for connection to an exit button if required. The cable exits centrally from the back of the keypad making drilling and mounting very accurate. All settings and codes are programmed via the keypad using the master code. Operation – If a valid code is entered access is granted. Codes are changed via the keypad using the master code.
Features
- For internal use only
- Single door access control system
- Optional 20 digit lockout
- Use with Compact system
- 4 to 8 digit codes with up to 50 codes
- 1 to 60 sec door open time
