New Hikvision DS-2CD2763G0-IZS 6MP Motorised 2.8mm - 12mm Zoom Dome Network Camera
Description

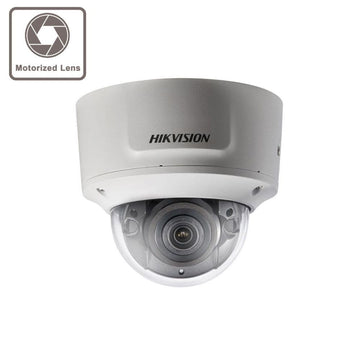

The Hikvision DS-2CD2763G0-IZS is a 6MP dome camera with a 2.8mm to 12mm motorised zoom lens and built-in infra-red LEDs that are effective up to 30m. This camera is from Hikvision's brand new EasyIP 2.0+ range, launched in June 2018.
This camera is fitted with IP67 weatheproof housing and IK10 vandal resistant housing making it a great choice for outdoor applications. The DS-2CD2763G0-IZS can cover a wide area of interest with 3-axes adjust-ability and optional wall mount.
A range of features are used to improve mage quality: back light compensation (BLC), 3D digital noise reduction technology (3D DNR), wide dynamic range (WDR) and region of interest (ROI).
Furthermore, a range of built-in smart features are used to imrprove security even further: motion detection, line crossing detection and intrusion detection.
The DS-2CD2763G0-IZS has an optional SD card slot and uses H.265+ compression to greatly reduce bandwidth and storage needs. This camera can be powered with a 12VDC power supply or by PoE.
It can be accessed remotely via a web browser or the Hik-Connect app.
Features
- 6MP resolution
- 3072 X 2048
- Motorised zoom lens
- 120dB WDR
- Audio/Alarm I/O
- 30m IR range
- IP67 rated weatherproof housing
- IK10 rated vandal proof housing
- 128GB micro SD card slot
- Max frame rate 25 fps
- Back light compensation
- 3D Digital noise reduction technology
- Region of interest
- Line crossing detection
- Intrusion detection
- H.265, H.265+ codec
Specification
- Camera
- Image Sensor 1/2.9" Progressive Scan CMOS
- Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON),0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focus Auto
- Lens Type 2.8 to 12 mm，Motorized
- FOV Horizontal field of view: 88° to 27°,Vertical field of view: 56° to 18°,Diagonal field of view: 110° to 33°
- Aperture F1.6
- Lens Mount Φ14
- Aperture Type Fixed
- Illuminator
- IR Range Up to 30 m
- Wavelength 850nm
- Video
- Max. Resolution 3072 × 2048
- Main Stream 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/ H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Scalable Video Coding (SVC) H.264 and H.265 encoding support
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Wi-Fi
- Encryption Mode Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
- Target Cropping No
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, face detection
- Face Detection Yes
- General
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version 5.6.3
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, PoE (802.3af),Terminal block for DC input
- Power Consumption and Current 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
- Camera Dimension Φ153.4 × 133.1 mm (Φ6" × 5.2")
- Camera Weight Camera: 1287 g (2.8 lb.)
- Approval
- Protection IK10, IP66
