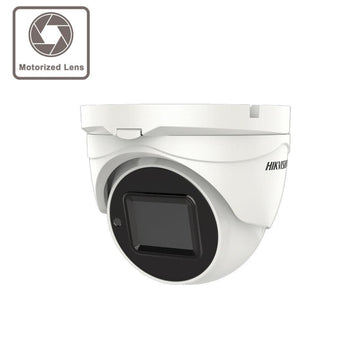

NEW 5MP DS-2CE56H0T-IT3ZE Turret 2.8-12mm
Information
Specification
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle Adjustment
Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
- Focal Length & FOV
95.7° to 29.1°
- Lens MountΦ 14
- Image
- Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
- Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Image EnhancementBLC
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video Output1 HD analog output
- General
- MaterialMetal
- Dimension123.86 mm × 134.3 mm × 110.11 mm (4.88" × 5.29" × 4.38")
- WeightApprox. 620 g (1.37 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Power Supply12 VDC ±25%, PoC.at
- ConsumptionMax. 7.8 W
- IR RangeUp to 40 m
- Approval
- ProtectionIP67
