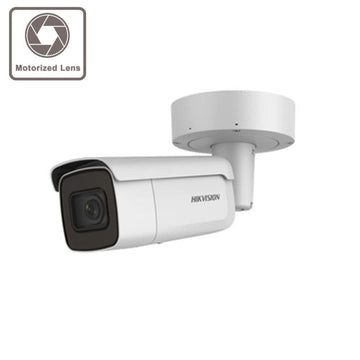

NEW 4MP DS-2CD2643G0-IZS Hikvision motorized varifocal lens bullet camera
NEW 4MP DS-2CD2643G0-IZS Hikvision motorized varifocal lens bullet camera
Information
Hikvision 4MP motorized varifocal lens bullet camera DS-2CD2643G0-IZS
Description
DS-2CD2643G0-IZS Hikvision 4MP IP Camera, 2.8 - 12mm motorized vari-focal zoom, 50m IR and a IP67 weather rating.
Features
- 4MP high resolution
- 2.8 - 12mm motorized varifocal lens
- Triple stream
- Up to 50m IR distance
- H.265+ compression
- 2 analytics
- IP67 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 128GB)
- 12V DC & PoE (802.3af)
Specification
- كاميرا
- Image Sensor 1/3" Progressive Scan CMOS
- Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- Wide Dynamic Range 120dB
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focus Auto
- Lens Type 2.8 to 12 mm，Motorized
- FOV horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
- Aperture F1.6
- Lens Mount Φ14
- Aperture Type Fixed
- Illuminator
- IR Range Up to 50 m
- Wavelength 850nm
- Video
- Max. Resolution 2688 × 1520
-
Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
- DNR 3D DNR
- Image Enhancement BLC/3D DNR/HLC
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event Line crossing detection, intrusion detection, face detection
- Face Detection Yes
- Interface
- Audio 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset Yes
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Video Output 1 Vp-p composite output(75Ω) (For adjustment only)
- General
- Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
- Power Consumption and Current 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
- Camera Dimension Φ 144.13 × 332.73 mm (Φ 5.7" × 13.1")
- Camera Weight Camera: Approx. 1740 g (3.8 lb.),With Package: Approx. 2610 g (5.8 lb.)
- Approval
- Protection IK10, IP66
