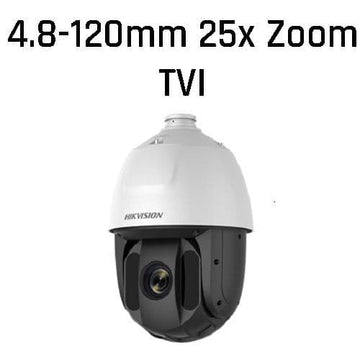

New 2MP 25x Zoom DS-2AE5225TI-A Hikvision 2MP IR PTZ with 25X zoom
Description
Hikvision DS-2AE5225TI-A IR Turbo 5-Inch Speed Dome is able to capture high quality images in poor light environment. The black anti-reflective glass increases the luminousness which helps IR distance reach up to 150 m. The embedded CMOS chip makes WDR, and real-time 1920 × 1080 resolution possible. With the help of the 25× optical zoom, and IR cut filter, the camera offers more details over an expansive area.
Does Not Include Power Supply or Bracket
Features
- Full HD 1080P video output
- 2MP CMOS image sensor
- 25X optical zoom
- 4.8 - 120mm
- Up to 150m IR distance
- Supports HD-TVI & CVBS BNC output
- Privacy masking, 3D DNR
- 120dB true WDR
- 3D intelligent positioning
- True day / night
- 24 VAC operation
Specification
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
- Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Zoom25 × optical, 16 × digital
- Lens
- Focal Length4.8 mm to 120 mm, 25 × optical
- FOV
Horizontal FOV: 57.6° to 2.5° (wide to tele)
Vertical FOV: 34.4° to 1.4° (wide to tele)
Diagonal FOV: 64.5° to 2.9° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 3.6 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range150 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speed
Pan manual speed: 0.1° to 120°/s
Pan preset speed: 120°/s
- Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset FreezingYes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status DisplayYes
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-off MemoryYes
- Video
- Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional FocusYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm2 alarm inputs, 1 alarm output
- RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power24 VAC/36 VDC, max. 30 W (IR: 10 W)
- DimensionΦ 208 mm × 305 mm (Φ 8.19" × 12.01")
- WeightApprox. 3.3 kg (7.28 Ib.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
