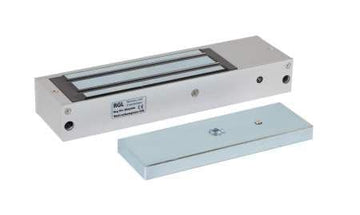

ML1200 - 545kg Electromagnetic Lock - 12/24V DC ¦ Maglock

The ML1200 is an RGL Electromagnetic Lock 12V/24V DC with a 545Kg Holding Force and built in surge protection.

The ML1200 is part of a range of magnetic locks suitable for wooden door types, single version with holding force up to 545kg.

 12/24V DC @ 600/300mA
545kgs (1200lb) Holding Force
 Built in Surge Protection
 Clean & Compact Design in Aluminium
 Suitable for FD30 & FD60 timber door sets*
 267x73x40mm

Monitored Version (ML600M)
 Includes Monitoring Contact
 Hall Sensor monitoring with relay output NO/NC
 Suitable for FD30 & FD60 timber door sets*
 267x73x40mm

*Fire Rated only when used with the RGL ML1200 Armature Housing - ML1200AS

Other models available:
Monitored - ML1200M
Double - ML1200DM

It is recommended that you consider the use of brackets with maglocks:

L Bracket for Outward Opening Doors/Gates - MLLBracket
Z&L Bracket for Inward Opening Doors/Gates - MLZLBracket
