ISD-SMG318LT-F Body Temperature Measurement - Walk through
4 week lead time - Special order item
This is a special order item and is non-cancellable & non-returnable. For delivery date and further information please don't hesitate to give us a ring. Thank you.

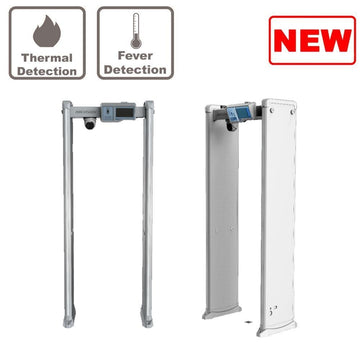

Description ISD-SMG318LT-F walk-through metal detector, adopting the thermal imagery technology, realizes non- contact temperature measurement. Face detection function of the camera makes an accurate positioning of the measurement. The detector also supports metal detection. It is suitable for safety inspection of dangerous goods and is widely used in public occasions and important places, etc. It is recommended to be used indoor with a windless environment.
- Temperature exception detection
- Linkage for audible alarm
- Uncooled sensor, resolution: 160 x 120
- Supports dual-light fusion image
- Supports visible light and thermal imaging frame over lay
- IP66 protective level
- Detection accuracy: metal in the size like a clip (or 1/2 clip) is detectable on the middle of the detector. Goods like Belt buckle can be excluded. Copper, aluminum, and zinc (over 150 g) , controlled knife, and gun are detectable
- Multi-area alarm: Indicates the metal position on the body. Max. 18 areas
Specification
- Dimension Parameters
- Appearance and Dimension
Detector dimension(without dome camera):2200 x 850 x 480mm (H x W xD)
Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)
Package dimension 2270 x 700 x230mm(H x W x D)
- Performance Parameters
- Power Supply110~240VAC，50-60Hz
- Communication Protocol
- Network Communication
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT
P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
- General Standard
- Working Temperature
Speed dome: 5℃ to 40℃, ＜95% RH
Walk-through detector: -20℃ to 85℃, 99%, RH
- Power Consumption<25W
- Protection Level
Dome camera: IP66
Walk-through detector: IP53
- Weight50Kg
- Thermal Imaging
- SensorVanadium oxide uncooled sensor
- Max. Resolution160× 120
- Pixel Interval17μm
- Response Waveband8 to 14μm
- Lens (Focal Length)3mm
- Field of View50°×37.2°
- Min. Focusing Distance0.3m
- Pseudo Color15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue
- Visible Light
- Sensor4 MP 1/2.7" Progressive Scan CMOS
- Resolution2688×1520@25fps
- Min. illuminance0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
- Focal length4mm
- Field angle84.0°×44.8°
- WDR range120dB
- IR distanceMax. 15 m
- Temperature measurement
- Temperature exception detectionExpert mode: 10 points, 10 frame, 21 rules on each line
- Body temperature measurementAI face detection, multi-target detection
- Measurement range30 to 45℃
- Temperature AlarmAlarm triggered when the temperature is over the threshold
- Measurement accuracy
No black body:±0.5℃
With black body: ±0.3℃
- Compression
- Video compressionH.265/H.264/MJPEG
- H265Main Profile
- H264Baseline Profile / Main Profile / High Profile
- Video bit rate:32 Kbps to 8Mbps
- Video standardG.711/G.722.1/G.726/MP2L2/PCM
- Audio bit rate::64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
