Hilook 4 Port Fast Ethernet Unmanaged POE Switch NS-0106P-35 (O-STD) With 2 Uplink Ports
Hilook 4 Port Fast Ethernet Unmanaged POE Switch NS-0106P-35 (O-STD) With 2 Uplink Ports
Hilook 4 Port Fast Ethernet Unmanaged POE Switch NS-0106P-35 (O-STD) With 2 Uplink Ports

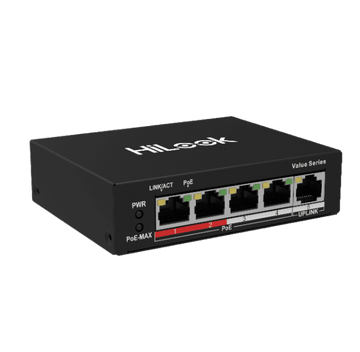

The HiLook NS-0106P-35 is a 4 port PoE (Power over Ethernet) unmanaged desktop switch that requires no configuration. It provides power and data over 4 x 10/100Mbps PoE ports.
NS-0106P-35 switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology on the basis of high-performance access to ensure stable data upload. The switches support long range function.
Features
- 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Specification
- PoE Power Supply
- PoE StandardPorts 1 to 4: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin
Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
- PoE PortPorts 1 to 4
- Max. Port PowerPorts 1 to 4: 30 W
- PoE Power Budget35 W
- Network Parameters
- Port Number4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding Mode
Store-and-forward switching
- High priority portsPorts 1 and 2
- Ports for Long-Distance TransmissionPorts 1 to 4
- MAC Address Table4 K
- Switching Capacity1.6 Gbps
- Packet Forwarding Rate0.8928 Mpps
- Internal Cache768 Kbits
- Dialing Function
- Long RangePorts 1 to 4: up to 250m.
- General
- Shell
Metal material, fan-free design
- Gross Weight0.52
- Net Weight0.265
- Dimension (L × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
- Operating Temperature
-10°C to 40°C (14°F to 104°F)
- Storage Temperature-40°C to 85°C (-40°F to 185°F)
- Operating Humidity
5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply
48 VDC, 0.8 A
- Power Consumption in Idle< 5 W
- Power Souce38 W
- Max. Power Consumption38 W
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)
