Hikvision Waterproof Outdoor Gate/Door Smart Access kit (DS-K1T805MBFWX)

Hikvision Waterproof Outdoor Gate/Door Smart Access kit (DS-K1T805MBFWX)

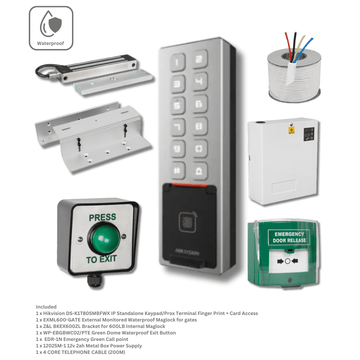

Included

1 x Hikvision DS-K1T805MBFWX IP Standalone Keypad/Prox Terminal Finger Print + Card Access
1 x EXML600-GATE External Monitored Waterproof Maglock for gates
1 x Z&L BKEX600ZL Bracket for 600LB Internal Maglock
1 x WP-EBGBWC02/PTE Green Dome Waterproof Exit Button
1 x  EDR-1N Emergency Green Call point
1 x  1202SM-1 12v 2ah Metal Box Power Supply
1 x 4 CORE TELEPHONE CABLE (200M)

Hikvision DS-K1T805MBFWX IP Standalone Keypad/Prox Terminal Finger Print + Card Access

Access Control Terminal

• High protective level: IP65 and IK08
• Slim and flexible design with metal
• 3,000 fingerprints, 10,000 cards and 100,000 events storage
• Built-in card reader for M1 card
• Supports operation by mobile App (Hik-Connect)
• Supports AP configuration, configuration via PC web and mobile web are available
• Supports multiple authentication types: card, fingerprint, PIN, and bluetooth

EXML600-GATE External Monitored Waterproof Maglock for gates

• External magnet
• Weatherproof
• Dual voltage 12v/24v
• Side or face fixing
• Armature comes with fixing kit

Dimensions:220x27x45 (mm)

Z&L BKEX600ZL Bracket for 600LB Internal Maglock

• ZL bracket for use on inward opening gates
• Anodised aluminium finish
• Z Bracket can provide an extra 20mm of reach for non standard door settings

Dimensions:Z - 200(mm) L - 222(mm)

​​​​​​​
1 x WP-EBGBWC02/PTE Green Dome Waterproof Exit Button

• All plastic large green button.
• Momentary operation.
• High impact plastic back box.
• Can be surface or flush fitting.
• Easy clean surface. Ideal for general/sensitive areas.
• Gasket and gland included

Dimensions: 85x85x40/50 (mm)

1 x  EDR-1N Emergency Green Call point

• All one colour
• Easy clean surface (ideal for hospitality areas)
• Easy cable entry from sides or rear
• Screw footprint for surface fitting onto standard back box
• Key reset operation (not replacement glass)
• Internal use
• Emergency Door Release - Permanently lit
• Changes to red on activation/alarm

1 x  1202SM-1 12v 2ah Metal Box Power Supply

• Switchmode technology.
• Mild steel construction,
• White powder coated.
• LED Indicators (mains, battery output.)
• Seperate fused mains connections
• Full electronic protection
• On board tamper protection.
• Converts power more efficiently (switch mode)
• Multiple cable entry (inc rear)
• Wiring Instructions included

Dimensions: 225x196x75 (mm)
