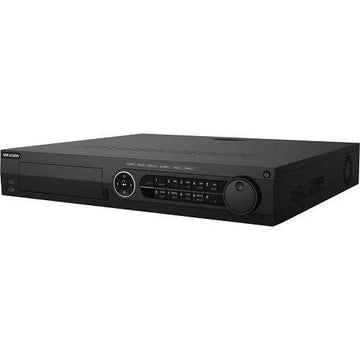

Hikvision iDS-7316HQHI-M4/S Ultra Series AcuSense 16-Channel 1080p 1.5U H.265 DVR, 4HDD
Hikvision iDS-7316HQHI-M4/S Ultra Series AcuSense 16-Channel 1080p 1.5U H.265 DVR, 4HDD
Hikvision iDS-7316HQHI-M4/S Ultra Series AcuSense 16-Channel 1080p 1.5U H.265 DVR, 4HDD
Features
- Up to 16-ch IP camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 1080p@15 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- POS triggered recording and POS information overlay
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4-ch, for channel 1/2/3/4 only
- Video and Audio
- IP Video Input
8-ch (up to 24-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, independent)
- Synchronous Playback16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-streamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Total Bandwidth240 Mbps
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
- SATA4 SATA interfaces
- eSATA1 eSATA interface
- CapacityUp to 12 TB capacity for each disk
- USB Interface
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 55 W (without HDD)
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)440 × 401 × 72 mm (17.3 × 15.8 × 2.8 inch)
- Weight≤ 5 kg (without HDD, 11.0 lb)
