Hikvision Hilook 4 Port Fast Ethernet Unmanaged POE Switch NS-0105P-35 (B)
Hikvision Hilook 4 Port Fast Ethernet Unmanaged POE Switch NS-0105P-35 (B)
Regular price
£27.99
Sale price
£27.99
Regular price
Unit price
Information

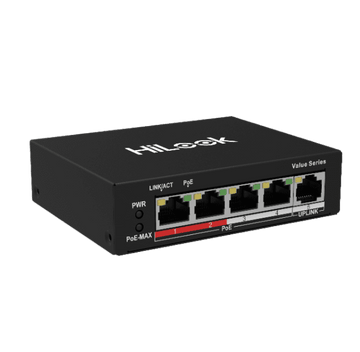

HiLook NS-0105P-35 5-port 100 Mbps PoE switch
This switch is used for commissioning PoE devices (e.g. PoE network cameras).
This text is machine translated.
Highlights & Details
- Intelligent cache optimization
- Remote data transmission up to 250 meters
- Lightning protection
Facts
- Ports 1 to 4 support the IEEE 802.3af/IEEE802.3at standard
- If the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 through 4 support remote data transmission of up to 250 meters
- All connections support a 6 kV lightning protection
- Supports Auto MDI/MDIX, storage and forwarding, MAC address auto-learning and auto-aging and intelligent cache optimization, reverse polarity protection.
Delivery
- PoE switch
- Power supply unit
- Installation guide.
Specification
- General
- ShellMetal material, fan-free design
- Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Power supply48 VDC, 0.8 A
- Storage humidity5% to 95% (no condensation)
- Net weight0.2 kg (0.4 lb)
- Gross weight0.48 kg (1.06 lb)
- Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Operating humidity5% to 95% (no condensation)
- Power consumption in idle3 W
- Network parameters
- Port number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
- Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding modeStore-and-forward switching
- Working modeStandard mode (default); Extend mode
- MAC address table1 K
- Switching capacity1 Gbps
- Packet forwarding rate0.744 Mpps
- Internal cache448 Kbits
- High priority portsPorts 1 to 2
- Ports for long-distance transmissionPorts 1 to 4
- PoE power supply
- PoE standardIEEE 802.3af, IEEE 802.3at
- PoE power pinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
- PoE portPorts 1 to 4
- Max. port power30 W
- PoE power budget35 W
- Max. power consumption38 W
