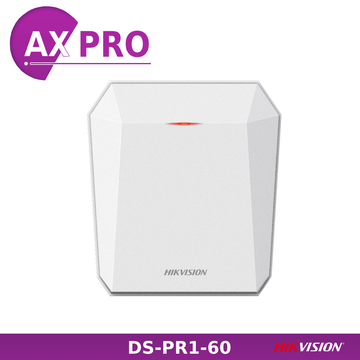

Hikvision DS-PR1-60 Security Radar
DS-PR1-60 security radar, uses phased array technology, pulse doppler and low-power FMCW modulation technology for intrusion detection. It supports multi-target positioning, tracing and multiple linked camera tracking.
Features
- Detection angle: 100°
- Detection range: 60m
- Line crossing(Max. 4 trigger lines) and Zone alarm(Max. 8 Zones)
- 2 Selectable frequency band
- Coverage up to 3,000 sq m
- Up to 32 detection targets
- Links up to 4 speed domes for auto target-tracking and the speed domes can be mounted separately
- Function of radar-speed dome linkage: smooth stream*, mandatory switch of speed dome tracking target , parking action and field of view display for each speed dome
- Supports 3 low-voltage relays, 1 high-voltage relay
- Multiple radars can link to one speed dome
- movable trigger line(whole line or one endpoint), editable trigger line length, and configurable trigger line direction
- Selectable applications including open mode, shrub mode, and custom mode (with adjustable sensitivity)
- 3 selectable Scenario Modes optional
- Up to 4 targets can be tracked by 4 speed domes respectively
- Water resistant and vandal proof (IP67 and IK09)Multiple anomaly detections: Anti-masking
Specification
- Detection performance
- Velocity measurement accuracy± 0.1m/s
- Velocity range- 8.7 to 8.7 m/s
- Range measurement accuracy± 0.75m
- Radar transmit power≤20 dBm
- Date fresh rate10 frames / s
- Detection angle100°
- Detection range60m
- Microwave frequency24.05 ~ 24.25GHz
- Max. Target number32
- Software features
- ScheduleAuto Arm/Disarm Schedule
- Configuration toolsWeb / iVMS-4200
- Firmware undate toolsWeb / iVMS-4200
- Exception detectionCommunication failure alarn, Movement alarm, Anti-masking detection alarm
- Hardware features
- Serial portRS232
- Tamper-ProofTampering alarm
- Netowrk interface1 RJ45 10M/100M self-adaptive, PoE
- Electrical characteristics
- Power supplyStandard PoE / 12VDC
- Power interface802.3at standard PoE or 12VDC
- Operation humidity10% to 90%
- Operation temperature-40℃ to 65℃
- Power consumption6W
- Wireless transmission
- RF modulationFMCW
- Display
- IndicatorDual-color LED
- General
- IK rateIK09
- IP rateIP67
- Installation methodMultiple installations with different brackets
- Installation height1.2 - 4m (Recommend Height: 2.5m)
- Dimension(WxHxD)
206 mm × 228 mm × 61 mm (8.11" ×
8.98 × 2.40\")"
- Anti-corrosionNEMA 4X
- Application scenarioOutdoor
- Shell materialPC+ABS
- ColorWhite
- BracketMultiple brackets
- Weight1.84 kg (4.06 lb)
- Device management
- Alarm output4 Relay Outputs(NO/NC)
- Zones8
- Relay output
3-ch: 0.5A/125VAC, breakdown voltage: 1kV
1-ch: 10A/240VAC. Breakdown voltage: 2.5kV
- Report method
- ProtocolHTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH
