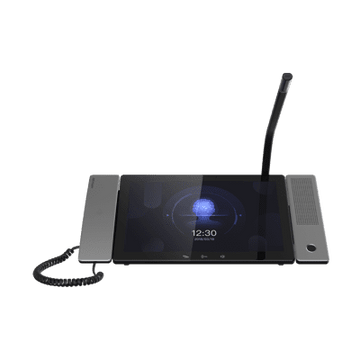

Hikvision DS-KM9503 Video intercom main station
Regular price
£636.99
Sale price
£636.99
Regular price
Unit price
Information
Hikvision DS-KM9503 Video intercom main station
- 10.1-inch IPS touch screen with resolution: 1280 × 800
- Up to 128 network cameras can be added to the device
- Built-in SIP private server, up to 10000 video intercom devices can be added
- Supports more than 2 speakers and microphones: Connects to external earphone (3.5mm), external goose neck microphone
- Displays operation pages via HDMI
- Power supply: standard PoE & 12 VDC
- Video intercom and access control functions
Specification
- System parameters
- Operation systemAndroid 7.1
- ROM8 GB
- RAM2 GB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1280 × 800
- Video parameters
- Lens/
- Resolution2 MP
- FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
- Wide dynamic range (WDR)/
- Supplement light/
- Video compression standard
Main stream: H.264;
Sub-stream: H.264
- Audio parameters
- Audio inputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio outputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Linked network camera capacity128
- Linked intercom device capacity10,000
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-Fi/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input2 (reserved)
- Network interface2
- TAMPER/
- RS-4851 (reserved)
- USB3
- TF cardSupport TF card, up to 128 G
- Lock control2 relays (reserved)
- General
- Button3 touch buttons
- InstallationTable mounting & wall mounting
- Indicator3
- Weight
Net weight: 1.285 kg (2.8 lb)
Gross weight: 2.305 kg (5.0 lb)
- Protective level/
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
- Battery/
- Power supply12 VDC, standard PoE (LAN1)
- Application environmentIndoor
- Power consumption≤ 12 W
- LanguageEnglish, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian English, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese.
