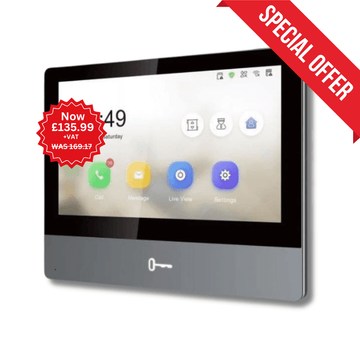

Hikvision DS-KH8350-WTE1 IP Video Intercom Ultra Indoor Station with 7-Inch Touch Screen (Offer)
Hikvision DS-KH8350-WTE1 IP Video Intercom Ultra Indoor Station with 7-Inch Touch Screen (Offer)
Hikvision DS-KH8350-WTE1 IP Video Intercom Ultra Indoor Station with 7-Inch Touch Screen (Offer)
Quick Overview
The Hikvision DS-KH8350-WTE1 is a 7-inch touch screen video intercom indoor station which supports wireless network. It allows users to view live videos of external cameras and door stations.
This intercom is a 2017 Reddot Award winner, with a display resolution of 1024 × 600. It also has UI V2.0 which is a new user friendly design and aerospace-grade aluminum.
With dimensions of 180 mm(W)× 140 mm(H)× 22.4 mm(D), ultra slim 8.6mm design, and premium tempered glass, this intercom is perfect for users. Its not too big so it stands out and looks odd but its not too small so users struggle to use it.
It is operated by Embedded Linux operation system. Powered by either a standard PoE or a 12V DC power supply, using a maximum of 7w.
Supported by a TF card, users can store messages and capture images, with up to 32g storage. Users can also use the mobile client or client software to unlock remotely.
The DS-KH8350-WTE1 has a built-in loudspeaker audio output, and built-in omnidirectional microphone audio input, with echo cancellation and noise suppression giving users a better sound.
Specification
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM128 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1024 × 600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、G.722.1
- Audio output1 built-in loudspeaker
- Audio InputBuilt-in omnidirectional microphone
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Notice capacity200
- Linked indoor extensions capacity16
- Linked doorphone capacity17
- Linked network camera capacity16
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output2
- Lock control2 high/low level relays (3.3V/0V)
- General
- Button1 physical button
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 355 g (0.8 lb)
Gross weight: 899 g (2.0 lb)
- Protective level/
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
- Battery/
- Power supply12 VDC, 1 A, IEEE802.3af, standard PoE
- Application environmentIndoor
- Power consumption≤ 8 W
- LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
