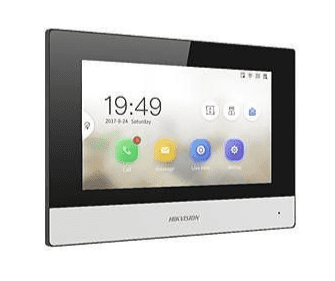

Hikvision DS-KH6320-WTE2 is a 2 wire 7" video intercom touch screen, part of Hikvision's new modular intercom range. With built-in omni-directional microphone and speakers, users can view live images and answer calls received from the DS-KD8003-IME2 outdoor station. The indoor touch screen supports WiFi connections making it a powerful yet simple to install intercom solution.
The DS-KH6320-WTE2 7-inch touch screen offers 1024 x 600 resolution using capacitive touch technology in a compact and affordable package. The screen supports 128Mb internal memory to save images etc with additional TF card slot for up to 32GB additional storage and up to 8 external alarm inputs (from a PIR or similar).
You can answer calls & open the gate using the touch screen and also remotely via Hik-Connect mobile App or via PC using IVMS-4200.
When used alongside a Hikvision NVR its possible to view the NVR's cameras on the touch screen in addition to any outdoor station camera.
Features
- Two-pin wire for power supply and network access
- UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Stores messages and captured pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
- Supports Wi-Fi
Specification
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- ProcessorEmbedded processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeTFT
- Resolution1024 × 600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、G.722.1
- Audio outputBuit-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacity
200 captured pictures (with TF card); 200 alarm records
2 MB RAM (without TF card) reserved for events
- Notice capacity200
- Linked network camera capacity16
- Linked indoor extensions capacity16
- Linked doorphone capacity17 IP doorphones Max.
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8-ch alarm inputs
- TAMPER/
- RS-4851
- USB/
- TF cardMax to 128 G, SD 2.0 or lower version
- Alarm output2 relays (30 V Max.)
- Lock control2 relays, Max. to 30 VDC, 0.3 A
- Two-Wire IP interface1
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Weight
Net weight:0.325 kg
Gross weight: 0.650 kg
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
- Battery/
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Application environmentIndoor
- Power consumption≤ 4 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
