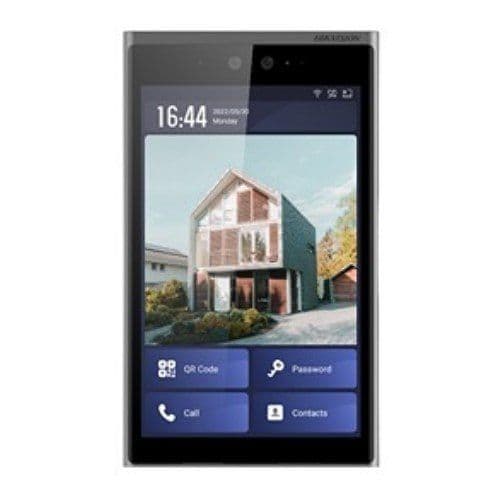

Hikvision DS-KD9633-WBE6 , Video Intercom Door Station with Face Recognition 10.1" IPS Touchscren
Hikvision DS-KD9633-WBE6 , Video Intercom Door Station with Face Recognition 10.1" IPS Touchscren
Regular price
£1,012.99
Sale price
£1,012.99
Regular price
Unit price
Information
Hikvision DS-KD9633-WBE6 , Video Intercom Door Station with Face Recognition 10.1" IPS Touchscren
Intelligent IP video intercom door station providing the best quality and performance on hardware design and software functionalities. The robust method of authentication and audio communication brings convenience to a new level.
Main Features
- IP65, IK07 rating, Aluminum frame
- 10.1" Touch Screen with built-in 2 MP Touch Screen
- Support QR code, password, and face authentication for registered users
- Call specific indoor tablet in one click or scroll through contact list to find calling recipient
Specification
- System parameters
- Operation systemAndroid 7.1
- ROM4 GB
- RAM2 GB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS
- Resolution1280 × 800
- Brightness410 cd/m²
- Video parameters
- Lens2 x 2 MP HD camera with low illumination
- Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 1280 × 720p and 640 × 480p
- FOVHorizontal: 88°, Vertical: 44°
- Wide dynamic range (WDR)Digital WDR/120 dB
- Supplement lightIR light, up to 3 m
- Video compression standardH.264
- Audio parameters
- Audio input2 built-in omnidirectional microphone
- Audio compression standardG.711 U, G.711 A
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity20000
- Face capacity10000
- Fingerprint capacity/
- Card capacity100000
- Message capacity/
- Linked indoor station capacity500
- Sub door station capacity16
- Network parameters
- Network protocolTCP/IP, RTSP
- Wi-FiReserved
- BluetoothReserved
- 3G/4G/
- Authentication
- Card reading frequency13.56 MHz
- Device interfaces
- Alarm input4 (2 exit butttons and 2 door contacts by default)
- Network interface2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
- TAMPER1
- Exit button2 (1 for lock control and 1 for secure door control unit)
- RS-4852 RS-485 (Half duplex, HIKVISION)
- USB2 for internal use only
- Wiegand/
- TF card1 (reserved)
- Alarm output2 (reserved)
- Lock control2 relays, Max. 30 VDC, 2 A, lock 2 needs secure module
- Door contact input1
- General
- InstallationSurface mounting and flush mounting
- Indicator/
- Weight
Net weight: 1.225 kg
Gross weight: 3.333 kg
- Protective levelIP65 and IK07
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)271 mm × 159.2 mm × 26.5 mm (10.7" × 6.3" × 1")
- Battery/
- Power supply12 VDC, 2 A
- Application environmentOutdoor
- Power consumption≤ 18 W
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Lithuanian,Estonia,Latvian,Norwegian,Danish,Slovakia,Hebrew,Swedish,Finnish,TraChinese,Mongolian,HongKongTraChinese
