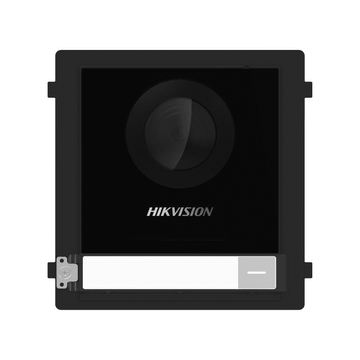

Hikvision DS-KD8003Y-IME2 Two wire main unit
Regular price
£104.99
Sale price
£104.99
Regular price
Unit price
Information
Key Features
- 2-Wire main unit of modular door station
- 2MP fisheye camera with IR supplement
- One call Physical Button For easier calls
- Two-lock control
- IP65 protection level
- Convenient configuration via Web remotely
- Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Specification
- System parameters
- Operation systemEmbedded Linux operation system
- ROM32 MB
- RAM256 MB
- ProcessorEmbedded Processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution2 MP
- FOVHorizontal: 146°, Vertical: 82°
- Wide dynamic range (WDR)Support
- Supplement lightIR light, up to 3 m
- Video compression standardH.264
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Face capacityNA
- Fingerprint capacity/
- Message capacity/
- Linked indoor station capacity500
- Sub door station capacity16
- Network parameters
- Network protocolNA
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Device interfaces
- Alarm input4 (2 exit buttons and 2 door contacts by default)
- Network interfaceNA
- TAMPER1
- Exit button2 (2 for lock control)
- RS-4851 (1 for Hikvision's sub module communication)
- USBNA
- WiegandNA
- TF cardNA
- Alarm outputNA
- Lock control2 relays, Max. to 30 VDC, 2 A
- Door contact input2
- Two-Wire IP interface1
- General
- Button1
- InstallationSurface mounting, flush mounting
- Indicator/
- Weight
Net weight: 0.380 kg
Gross weight: 0.541 kg
- Protective levelIP65
- Working temperature-40° C to 60° C (-22° F to 140° F)
- Working humidity10% to 90%
- Dimension (W × H × D)100 mm × 98 mm × 42 mm
- Battery/
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Application environmentOutdoor
- Power consumption≤ 4 W
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
