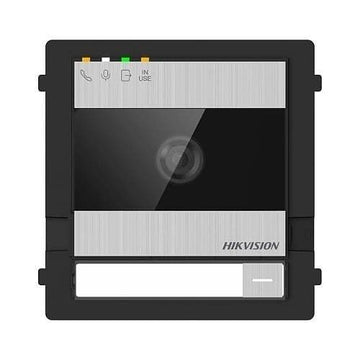

Hikvision DS-KD7003EY-IME2 2-Wire HD Door Station
Hikvision DS-KD7003EY-IME2 2-Wire HD Door Station
Elevate your security offerings with the Hikvision DS-KD7003EY-IME2 2-Wire HD Door Station, designed specifically for UK CCTV installers seeking advanced access control solutions. This state-of-the-art door station integrates seamlessly into your CCTV systems, enhancing security and convenience for your clients.
Featuring high-definition video capabilities, this door station delivers crisp and clear visuals, ensuring reliable identification of visitors and comprehensive property monitoring. Its innovative 2-wire installation design streamlines the setup process, saving you time and effort during installation.
Built to withstand the rigors of the UK climate, the DS-KD7003EY-IME2 is vandal-resistant and weatherproof, making it suitable for outdoor installation in any environment. With infrared night vision and wide dynamic range (WDR) technology, it ensures optimal performance even in challenging lighting conditions, providing round-the-clock security.
The door station is fully compatible with the Hik-Connect app, enabling remote viewing and management from any location using a smartphone or tablet. Additionally, seamless integration with Hikvision's comprehensive range of security products allows you to create tailored solutions for your clients, meeting their specific security needs effectively.
Offer your clients peace of mind and reliable access control solutions with the Hikvision DS-KD7003EY-IME2 2-Wire HD Door Station. Stay ahead in the competitive UK CCTV market by providing cutting-edge security technology and exceptional service.
Specification
- System parameters
- Operating systemEmbedded Linux operation system
- ROM4 GB
- RAM256 MB
- CPUEmbedded Processor
- Display parameters
- Screen sizeNA
- Operation methodNA
- TypeNA
- ResolutionNA
- Video parameters
- Supplement lightLow illumination, IR supplement lights
- Video standardH.264
- Lens1
- FOVHorizontal: 133°, Vertical: 82°
- WDR
Support
- Resolution2 MP
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio input
Built-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Linked indoor station capacityMax.99
- Sub door station capacity16
- Network parameters
- Wired network10/100 Mbps self-adaptive through 2-wire interface
- Wi-FiOnly AP mode for configuration
- BluetoothNA
- 3G/4GNA
- Device interfaces
- Alarm input2（supports Exit button or Door contact input）
- Network interfaceNA
- TAMPER1
- Exit button1
- Door contact input1
- RS-4852 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
- WiegandNA
- TF cardNA
- Alarm outputNA
- DIP switch6 decimal DIP switch
- Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
- Two-wire IP interface1
- General
- Button0-2（Flexible adjustment）
- InstallationSurface mounting & flush mounting
- Indicator4 LED lights(Opening door、Calling、Intercom、In use）
- WeightWith package: 426g ( 0.94lb),Without package: 290g ( 0.64lb)
- Protective levelIP65 IK08
- Working temperature
-40° C to 60° C (-22° F to 140° F)
- Working humidity
10% to 90%
- Dimensions
99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\")
- Battery/
- Power supply48V，Powered by distributor DS-KAD7060EY or 12VDC
- Application environmentOutdoor
- Power consumption≤ 6 W
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
