Hikvision - DS-KD-TDM - Touch Display Module with M1 Card Reader
Regular price
£304.95
Sale price
£304.95
Regular price
Unit price
Information
Key Features

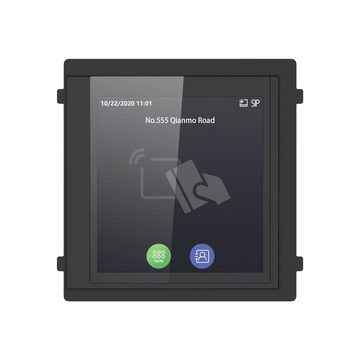

- Touch display module with M1 card reader of modular door station
- 4-inch touch screen with rich information display: Dial number, pin code unlock, contact list, advertisement
- Store up to 2000 contacts
- IP65 and IK08 higher protection level
- Support multiple languages
Specification
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM128 MB
- Display parameters
- Screen size4-inch
- TypeIPS
- Resolution480 × 480
- BrightnessAdjustable, Max.500 cd/m2
- Audio parameters
- Audio input/
- Audio compression standard/
- Audio output1 buzzer
- Audio quality/
- Volume adjustment/
- Loudspeaker consumption/
- Network parameters
- Wireless networkAP mode
- Authentication
- Card reading frequency13.56 MHz
- Card reading distance2 cm
- Card typeM1 card
- Device interfaces
- TF cardReserved
- DIP switch8 bits
- Two-ware cascading interface2
- General
- InstallationFlush mounting, surface mounting
- Protective levelIP65, IK8
- Working temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension (W × H × D)100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power supply12 VDC, supplied by the main module
- Power consumption≤ 4 W
- LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
