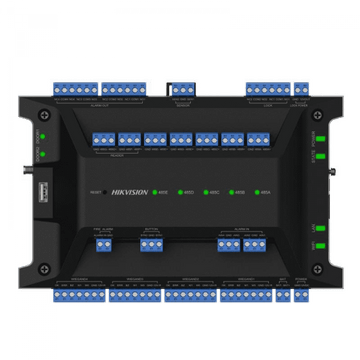

Hikvision DS-K2702WX-E1(P)(O-STD) Access Controller
Regular price
£233.99
Sale price
£233.99
Regular price
Unit price
Information
Hikvision DS-K2702WX-E1(P)(O-STD) Access Controller
Access Controller
- Supports 2 door control. It can extend up to 62 DS-K2M002X access modules, and up to 126 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Powers supply by PoE, and Wi-Fi is available
Specification
- System
- Operating systemLinux
- Network
- Wired network1, 10/100/1000 Mbps self-adaptive
- Wi-FiSupport, 2.4 G, 802.11b/g/n
- Interface
- Network interface1
- Lock control2
- Exit button2
- Door contact input2
- Alarm input4
- Alarm output4
- TAMPER1
- RS-4857, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- Wiegand4, standard 26/34 input, supports custom Wiegand settings
- USB1, USB 2.0
- PoE1. Supports 802.3at
- Fire interface1
- Capacity
- User capacity100,000
- Fingerprint capacity10,000
- Card capacity200,000
- Event capacity600,000
- Linked door capacity
Self: 2 doors
Extended: up to 126 doors (connected with 62 access modules)
- Linked card reader capaciry4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
- Authentication
- Fingerprint recognition duration＜ 1 s
- General
- Indicator11 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 1 for Wi-Fi status, 5 for RS-485 status, and 2 for door status
- BatteryCharge and discharge
- Power supply12 ± 15% VDC, standard PoE
- Power consumption≤ 72 W
- Working temperature-10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity0% to 90% (No condensing)
- InstallationInstallation with guide rail
- LanguageEnglish, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
- Lock Power Out12 V, 2A
- Function
- Configuration via Web browserSupport
- Multi-factor authenticationSupport
- First person inSupport
- Anti-passbackSupport 32 routes (64 card readers each)
- Multi-door interlockingSupport 32 groups (32 doors each)
