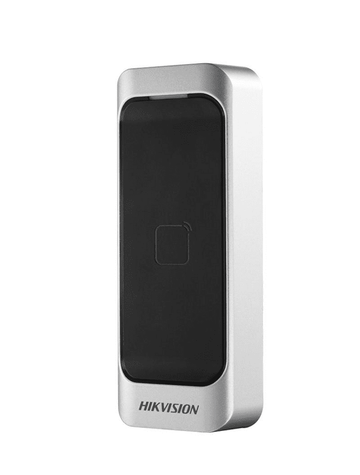

HIKVISION DS-K1107AM Card Reader
Regular price
£32.99
Sale price
£32.99
Regular price
Unit price
Information
HIKVISION DS-K1107AM Card Reader
Features
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56 MHz)
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reading.
Specification
- System
- Processor32-bit
- Interface
- TAMPERSupport
- RS-485Support
- WiegandSupport (set via DIP switch)
- Authentication
- Card reading frequency13.56 MHz
- Card reading distance≤50 mm (≤1.97")
- General
- IndicatorPower indicator, status indicator
- Power supply12 VDC
- Power consumption≤2 W
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity10% to 90% (Non Condensing)
- Protective levelIP65
- Dimensions115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
- InstallationWall Mounting with Screws; Do Not Support Gang Box
- BuzzerSupport
