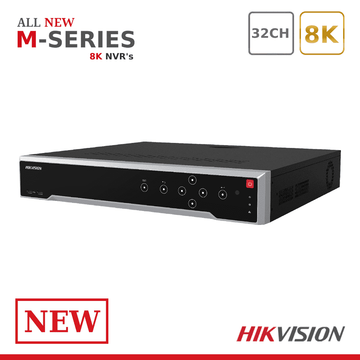

The Hikvision DS-7732NI-M4 is an all New M-Series NVR offering the highest bandwidth in the range with up-to 32MP 8K support.
A range of video motion detection alarms can be configured to increase scene awareness and provide reliable security monitoring. By connecting additional external devices through the I/O ports, the unit can support two-way audio (depending on the connected cameras' audio capabilities). This allows activity in the scene to be heard and communication with those present, a helpful feature when investigating events in real time.
Recordings can be scheduled to run continuously or as a result of an alarm signal. Instant playback can be configured to trigger when an alarm is raised, allowing the user to investigate the incident and help determine its cause. Recordings can be easily retrieved with the smart search feature, played back and then exported via the USB connection.
Features
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
Specification
- Video and Audio
- IP Video Input
32-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
- HDMI 2 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA Output 1920 × 1080/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback16-ch
- Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Camera Access ProtocolONVIF(Version 2.5), RTSP
- RAID
- RAID TypeN/A
- Auxiliary Interface
- eSATA1 eSATA interface
- SATA4 SATA interfaces
- CapacityUp to 16 TB capacity for each disk
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD )
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
- Weight≤ 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
