Hikvision DS-7616NI-K2/16P IP 16ch 4K 8MP NVR - 16 POE (Offer)
Regular price
£129.00
Sale price
£129.00
Regular price
Unit price
Information

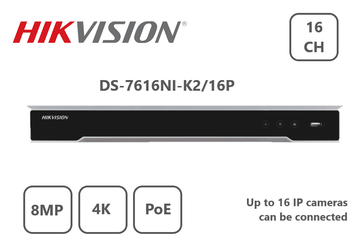

Hikvision DS-7616NI-K2/16P IP 16ch 4K 8MP NVR - 16 POE NVR
This NVR offers you an economic solution for Small and medium IP based CCTV installations. It supports cameras up to 8 megapixels resolution and 16 PoE cameras. This NVR is Onvif compliant allowing maximum integration with 3rd party products. Audio recording, talkback function and camera output relay control over Network (Please note, functions are dependent on cameras with support for features, frame rate and resolution
Specifications
16-ch 1U 16 PoE 4K NVR
- Up to 16 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 8-ch @ 1080p decoding capacity
- Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 HDDs for continuous video recording
- Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Specification
- Video Parameter
- Decoding capability8*1080P
- Video and Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA independent output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out4/1
- General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
- Weight≤ 3 kg (without HDD, 6.6 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
