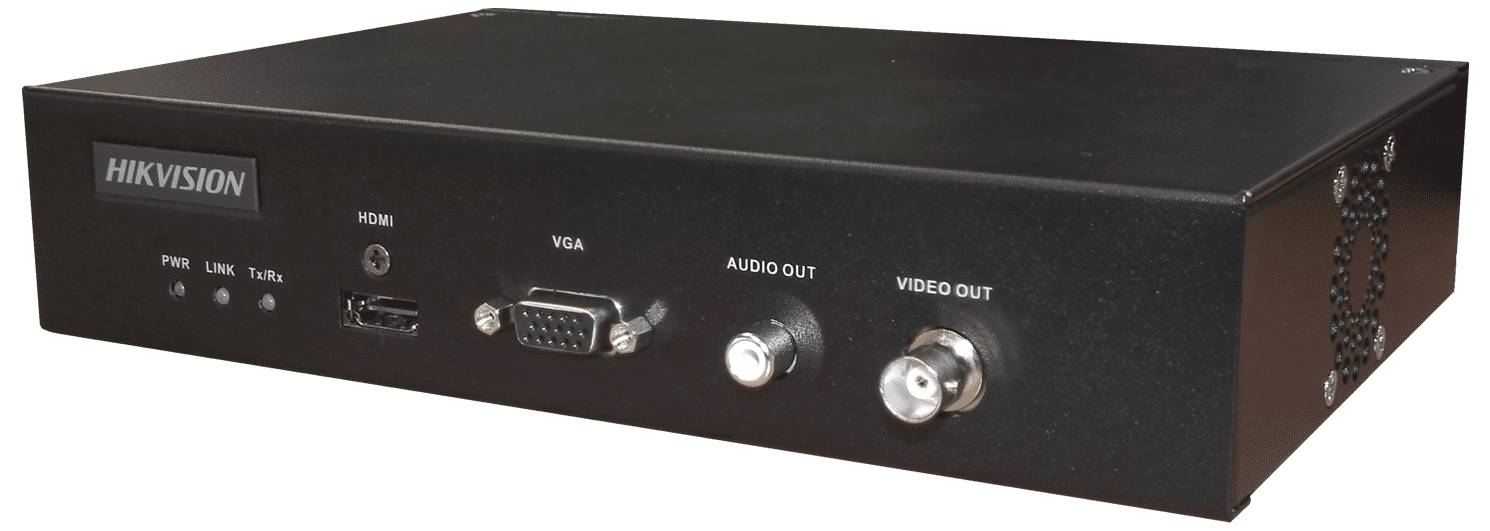

Hikvision DS-6901UDI(C)(STD) 1 Channel Decoder
Regular price
£373.44
Sale price
£373.44
Regular price
Unit price
Information
Hikvision DS-6901UDI(C)(STD) 1 Channel Decoder
- Provides HDMI, VGA, and BNC output interfaces.
- Up to 4K (3840 × 2160@30Hz) via HDMI output interface.
- H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
- PS, RTP, TS, ES, HIK encapsulation formats.
- Three encoding levels: baseline, main, and high-profile.
- G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
- Two decoding modes: active decoding and passive decoding.
- Remote video files' decoding output.
- Supports two-way audio via client software.
- Supports window opening, window roaming and window split.
- Supports multi-screen control with PC installed with RSC server.
- Gets stream and decodes via URL and RTSP from encoding devices.
- Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
- You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
- Configurable LED width and height parameters when the LED is connected.
- Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
- Accessible by 2.4 MP DeepinView camera.
- Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
- You can enable or disable the smart information for the thermal network camera.
- Two-way audio.
- Port aggregation technology (Ethernet Channel).
Specification
- Product Model
- Product ModelDS-6901UDI(C)
- Interface
- Alarm In8-ch alarm in
- Alarm Out8-ch alarm out
- Serial InterfaceRS-232 (RJ45) × 1, RS-485 × 1
- Network InterfaceRJ45 × 1, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface
- Video Wall
- Video Walls1
- Video Wall Size1
- Layers Per Screen1080p × 3 or 4K × 1.5
- LayersLayers Per Screen × Output Interface(s)
- Split Windowyes
- Scenes1
- Scene Auto-Switch Delay3 s
- Split Screen1, 2, 4, 6, 8, 9, 12, 16
- Background ImagesBackground color Only
- Delay of Displaying Local Signal Source on Video Wall120 ms
- Delay of Displaying Decoded Signal Source on Video Wall120 ms
- Auto-Switching PlansSupport 256 auto-switching plans
- General
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10％ RH to 90％ RH
- Gross Weight1.44 kg (3.17 lb)
- Power Consumption< 15 W
- Packing List
Decoder × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1
Power Cord × 1
Grounding Wire × 1
- Dimensions (W × H × D)220 mm × 148 mm × 45 mm (8.66'' × 5.83'' × 1.77'')
- Power SupplyExternal 12 VDC
- Audio Input
- Audio Input Interface TypeHDMI embedded or DB15 to BNC independent audio output
- Video Input
- Video Input Interfaces0
- Audio Encoding
- Audio Encoding FormatG722.1, G711U, G711A, AAC-LC
- Video Output
- Max. Video Output Resolution4K
- Video Output Interface TypeHDMI 1.4
- Video Output Interfaces1
- Video Output Resolution3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz
- Video Output Resolution (BNC)PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz
- Video Output Interface (BNC)1-ch BNC
- Video Decoding
- Video Decoding FormatH.264, H.265, SmartH.264, SmartH.265, MJPEG
- Video Decoding ResolutionUp to 32 MP
- Video Decoding Channels16
- Video Decoding Capability
1) H.264/H.265 format:
Support decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution in real time.
2) MJPEG format: 4-channel of 1080p and lower resolution
3) HIK264 format: 2-channels of 720p and lower resolution
- Audio Output
- Audio Output Interface Typeembedded HDMI audio output or BNC
- Audio Output Interfaces1
- Audio Decoding
- Audio Decoding FormatG711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC
- Encoding and Decoding/Audio Decoding
- Audio Decoding FormatG711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
- Decoding
- Decoding ResolutionUp to 32 MP
