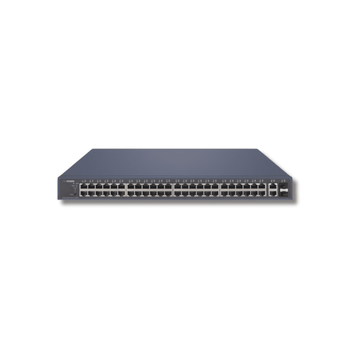

Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch
Hikvision DS-3E1552P-SI 48 Port Gigabit Smart POE Switch
Key Features
- IEEE 802.3af/at PoE standard
- 48 x Gigabit PoE Ports, 2 × gigabit RJ45, 2 x fiber optical ports
- Total PoE Power Budget 470W
- PoE Watchdog, STP/RSTP, VLAN, SNMP, QoS
- 104 Gbps Switching Capacity
- 16 K MAC Address Entries
Introducing the latest in network connectivity technology - our IEEE 802.3af/at PoE standard switch. With 48 x Gigabit PoE ports, 2× gigabit RJ45 ports, and 2 x fiber optical ports, this switch provides high-speed data transfer and power delivery to your network devices.
Featuring a total PoE power budget of 470W, our switch can handle even the most power-hungry devices, making it a perfect fit for small to medium-sized businesses, offices, and schools. The PoE watchdog ensures stable and reliable power delivery, eliminating the need for constant maintenance and troubleshooting.
With support for STP/RSTP, VLAN, and SNMP protocols, our switch offers robust network management capabilities. Experience seamless network performance and priority-based traffic management with our QoS feature. This allows for optimized data transfer and eliminates lag or downtime, keeping your network running smoothly.
Our switch has a 104 Gbps switching capacity, ensuring lightning-fast data transfer speeds. It also boasts 16K MAC address entries, making it suitable for larger and more complex networks.
Built with quality and standards in mind, our switch adheres to the IEEE 802.3af/at PoE standard, ensuring compatibility with a wide range of devices. Whether you are looking to enhance your existing network infrastructure or setting up a new one, our switch is a reliable and cost-effective solution.
Upgrade to our IEEE 802.3af/at PoE standard switch and experience the power of high-speed data transfer and effortless power delivery. With its advanced features and superior performance, this switch is the perfect choice for businesses looking for a reliable and efficient network solution. Buy now and elevate your network to the next level!
Specification
- General
- ShellMetal material
- Net Weight4.35 kg (9.59 lb)
- Gross Weight4.5 kg (9.92 lb)
- Dimensions (W × H × D)440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
- Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 5 A
- Installation ModeRack (equipped with mounting ears)
- Max. Power Consumption500 W
- Power Consumption in Idle30 W
- Surge Protection6 KV
- Network Parameters
- Ports48 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- MAC Address Table16 K
- Switching Capacity104 Gbps
- Packet Forwarding Rate77.38 Mpps
- Internal Cache12 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPoE: Ports 1 to 48
- Max. Port Power30 W
- PoE Power Budget470 W
- Software Function
- Long Range
Ports 1 to 48: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1 to 48: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1 to 48: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation groups.
- QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP, WRR priority schedule mode.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.
- System MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
- Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
