Hikvision DS-3E0510P-E Pro Series, 8-Port Gigabit Unmanaged POE Switch (Offer)
Hikvision DS-3E0510P-E Pro Series, 8-Port Gigabit Unmanaged POE Switch (Offer)
Regular price
£37.00
Sale price
£37.00
Regular price
Unit price
Information

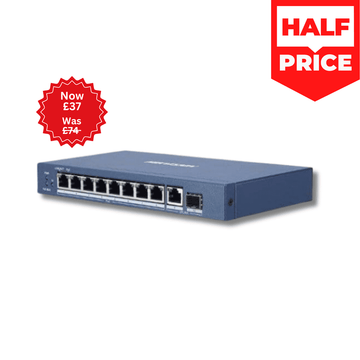

Hikvision DS-3E0510P-E Pro Series, 8-Port Gigabit Unmanaged POE Switch
DS-3E0510P-E switches are layer 2 gigabit PoE unmanaged switches, providing 8 gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data.
Feature and Function
- Layer 2 network switch designed for video data transmission
- 8 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- PoE port with 6 KV surge protection
- PoE output power management
- Gigabit network access
Specification
- General
- ShellMetal material, fan-free design
- Net Weight0.6 kg (1.32 lb)
- Gross Weight1.4 kg (3.09 lb)
- Dimensions (W × H × D)217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 2.5 A
- Max. Power Consumption120 W
- Power Consumption in Idle10 W
- Installation ModeDesk-Mounted,Wall-Mounted;
- Surge Protection6 KV
- Network Parameters
- Ports8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table4 K
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- Internal Cache1.5 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 8
- Max. Port Power30 W
- PoE Power Budget110 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
