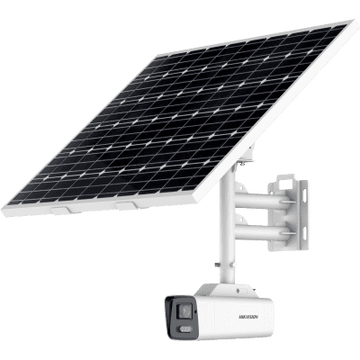

Hikvision DS-2XS6A87G1-L/C32S80 EXIR Fixed Bullet Solar Power 4G Network Camera Kit
Hikvision DS-2XS6A87G1-L/C32S80 EXIR Fixed Bullet Solar Power 4G Network Camera Kit
Hikvision DS-2XS6A87G1-L/C32S80 EXIR Fixed Bullet Solar Power 4G Network Camera Kit
Hikvision AcuSense 8MP fixed lens bullet solar power 4G camera kit Battery Option available
It can be used in the areas that are not suitable for laying wired network and electric supply lines, or used for the scenes that feature tough environment and have high demanding for device stability. It can be used for monitoring the farms, electric power cables, water and river system, oil pipelines and key forest areas. It also can be used in the temporary monitoring scenes, such as the large-scale competitions, the sudden public activity, the temporary traffic control and the city construction.
Hikvision ColorVu technology provides 24/7 vivid colourful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Features
- 8MP high resolution
- 2.8mm fixed lens
- Full time colour
- Triple stream
- Up to 30m White light
- H.265+ compression
- 6 analytics
- IP67 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 256GB)
- 80W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wake up
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- 12V DC
Specification
- Camera
- Image Sensor1/1.2" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter Time1 s to 1/100,000 s
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°
4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Iris TypeFixed
- ApertureF1.0
- Lens MountM20
- DORI
- DORI
2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265
Sub-stream: H.265/MJPEG
*Full power mode: main stream supports H.265+
- Video Bit Rate32 Kbps to 16 Mbps
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.265 encoding
- Region of Interest (ROI)4 fixed regions for main stream
- Network
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientHik-Connect (low power mode also supports), Hik-central Professional
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Mobile Communication
- SIM Card TypeMicroSIM
- Frequency
DS-2XS6A87G1-L/C32S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: Band3/5/8
DS-2XS6A87G1-L/C32S80 (US):
LTE-FDD: Band2/4/5/12/13/17/66/71
WCDMA: Band2/4/5
DS-2XS6A87G1-L/C32S80 (LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
WCDMA: Band1/2/3/4/5/8
GSM: Band2/3/5/8
DS-2XS6A87G1-L/C32S80 (JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/8
- Standard
DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA
DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA
- Image
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Interface
- RS-4851 RS-485 (half duplex)
- On-Board Storage
Built-in memory card slot, support microSD card, up to 256 GB;
Built-in 64 GB eMMC storage
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, up to 4 regions configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable,
The smart events are only supported under full power mode.
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power
12 VDC ± 20%, Ø5.5 mm coaxial power plug
1. Standby power consumption: 53 mW
2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
3. The max. power consumption: 3.2 W
- MaterialFront cover: metal, body: metal, bracket: metal
- Dimension829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is completely assembled)
- Package Dimension862 × 292 × 765 mm (33.9" × 11.5" × 30.1")
- WeightApprox. 25.4 kg (56.0 lb.)
- With Package WeightApprox. 30.1 kg (66.3 lb.)
- Storage Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
- Battery
- Battery Type
Lithium
*The battery should be ordered separately.
- Capacity30 Ah
- Battery Voltage 10.8 V
- Max. Output Voltage12.6 V
- Operating Temperature
Charging: -20 °C to 45 °C (-4 °F to 113 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Battery LifeMore than 500 cycles
- Battery WeightApprox. 3.3 kg (7.3 lb.)
- Extended Dimension236 × 154 × 80 mm (9.3" × 6.1" × 3.2")
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
FCC (47 CFR Part 15, Subpart B);
IC (ICES-003: Issue 7)
- RF
CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);
ICASA: same as CE-RED
FCC ID (47 CFR Part15 Subpart C);
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Safety
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Protection
Camera: IP67 (IEC 60529-2013)
Wind resistance 12 level, up to 40 m/s wind speed resistance
