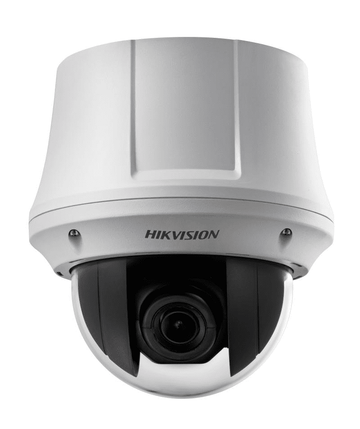

Hikvision DS-2DE4225WG-E3 4-inch 2 MP 25X Powered by DarkFighter Network Speed Dome
Hikvision DS-2DE4225WG-E3 4-inch 2 MP 25X Powered by DarkFighter Network Speed Dome
Hikvision DS-2DE4225WG-E3 4-inch 2 MP 25X Powered by DarkFighter Network Speed Dome
Elevate your surveillance capabilities with the Hikvision DS-2DE4225WG-E3 Pro Series PTZ Camera. Engineered for superior performance and reliability, this advanced camera offers high-quality imaging and a host of features designed to meet the diverse needs of modern security applications. From its exceptional low-light performance to its versatile pan and tilt abilities, this camera ensures comprehensive monitoring and precise surveillance, making it the ideal choice for safeguarding your property.
Key Features:
- High-Quality Imaging: Experience exceptional clarity with 2 MP resolution, ensuring detailed visuals for precise monitoring.
- Powered-by-DarkFighter Technology: Enjoy excellent low-light performance, ensuring reliable surveillance day and night.
- Advanced Image Enhancement: Benefit from features like WDR, HLC, BLC, 3D DNR, defog, regional exposure, and regional focus, enhancing image quality in various lighting conditions.
- Pan and Tilt Ability: Monitor zones of interest with ease, thanks to the camera's pan and tilt capabilities, offering flexibility in surveillance coverage.
- Optical Zoom: Get closer views of subjects in expansive areas with 25× optical zoom, ensuring enhanced surveillance effectiveness.
- Power Options: Choose between 24 VAC and PoE (802.3at) power options, providing flexibility in installation and operation.
- Efficient Compression Technology: Benefit from efficient H.265+/H.265 compression technology, reducing bandwidth and storage requirements without compromising image quality.
Invest in the Hikvision DS-2DE4225WG-E3 Pro Series PTZ Camera and empower your surveillance infrastructure with superior performance and advanced features. Whether you're securing a commercial property, industrial facility, or residential estate, this camera offers the reliability and precision needed to ensure comprehensive security solutions tailored to your specific needs.
Specification
- Camera
- Image Sensor1/2.8" progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
- Shutter Speed1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom25 × optical, 16 × digital
- Slow ShutterYes
- Lens
- Focal Length4.8 mm to 120 mm
- FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
- FocusAuto, semi-auto, manual
- ApertureMax. F1.6
- Zoom SpeedApprox. 3.6 s
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)0° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
- Tilt SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 160°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour,WebSocket,WebSockets
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users; 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE11, Chrome57+, Firefox52+, Safari11+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR＞52 dB
- DefogDigital defog
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Alarm1 alarm input, 1 alarm output
- ResetYes
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- General
- Power12 VDC, 2.0 A, max. 24 W; PoE (802.3 at)
- DimensionØ 165 mm × 179.5 mm (Ø 6.5" × 7.1")
- WeightApprox. 2 kg (4.41 lb.)
- MaterialADC 12, PC+ABS, PC/PMMA
- Operating Condition-10 °C to 50 °C (-10 °F to 122 °F). Humidity 90% or less (non-condensing)
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionTVS 6000V lightning protection, surge protection and voltage transient protection
