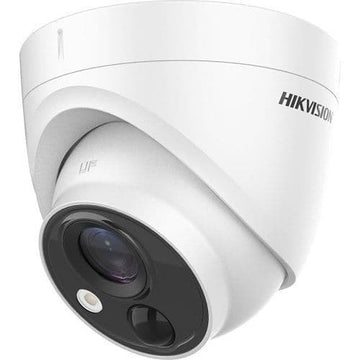

Hikvision DS-2CE71H0T-PIRLO IOT Series 5MP Smart IR PIR Camera, IP67, 2.8mm Lens

Unlike conventional cameras that can only serve the monitoring purpose, a PIR camera, by virtue of the built-in PIR sensor, detects passive infrared radiation emitted from heat sources. This function then further supports deterrence measures enabled by whether connecting to external alarm devices or built-in components, for example a siren or light.

Hikvision offers a wide selection of PIR cameras ranging from 2 MP to 5 MP, available in both bullet and dome forms. These cameras not only detect, but also help deter would-be intruders by triggering visual or audio alarms. With up to a 11-meter detection distance, the PIR camera covers sufficient areas no matter you need it for an open space, for example a warehouse, or a confined area like the entrance of a store.

Together with the DVR's Motion Detection feature, the PIR solution helps to provide timely intrusion detection, immediate response, clear evidence, as well as accurate alarms for security system. Hikvision's PIR cameras are your ideal choice for application scenarios such as home, office, warehouse, small business, and more.

Features

  • 5 MP PIR turret camera
  • PIR detection, strobe light alarm and alarm out to warn off intruders in real time
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Up to 2560 x 1944 resolution for surveillance in real-time

Specification

  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Time

    PAL: 1/20 s to 1/50,000 s

    NTSC: 1/20 s to 1/50,000 s

  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Light AlarmYes
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°

    3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.8°, diagonal FOV: 105.9°

  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
  • Frame RateTVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto/Manual
  • White LightAUTO/OFF
  • AGCSupport
  • Interface
  • Video Output1 HD analog output
  • General
  • Material

    Enclosure: Plastic

    Main body: Metal

  • DimensionΦ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53")
  • WeightApprox. 327 g (0.72 lb.)
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25%
  • ConsumptionMax. 3.5 W
  • IR RangeUp to 20 m
  • Approval
  • ProtectionIP67
