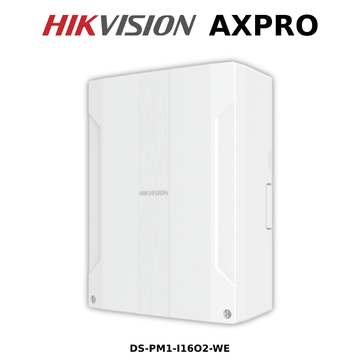

HIKVISION AX PRO Series DS-PM1-I16O2-WE Multi IO Transmitter
Regular price
£109.99
Sale price
£109.99
Regular price
Unit price
Information
HIKVISION AX PRO Series DS-PM1-I16O2-WE Single Input Transmitter
AX PRO wireless Multi IO transmitter offers a connection of third party wired detectors like outdoor PIR, to AX PRO alarm system and Supports tamper alarm, anti-masking and alarm output .
Features
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12v power outputs, can be used to power up external wired detectors
- Large space for back up storage battery
Specification
- Software features
- End of Line Resistance
1k 2.2k 4.7k 8.2k
NO/NC
- Hardware features
- Serial port1
- Battery port1, 12 VDC input
- Tamper-ProofFront and rear
- Power switch1
- Alarm input16
- Alarm output2
- Power Output2 (12v, total1A)
- Electrical characteristics
- Battery type
Compatible with 12v 7 Ah
150 × 64 × 94 mm
- Power supply100-240VAC，30w
- Operation humidity10%~90%
- Operation temperature–10 ~ 40°C
- Power consumption
Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)
220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
- Battery life spanUp to 36 hours
- Wireless transmission
- RF frequency868MHz
- RF methodTwo-way communication
- RF modulation2GFSK
- RF distance1100m
- Display
- Indicator3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
- General
- Installation methodWall Mounting
- Dimension(WxHxD)261*199*86.4mm
- Shell materialPlastic
- ColorWhite
- Weight
975 g (without battery)
3024g (with battery)
