HIKVISION AX PRO Series DS-PM1-I1-WE Single Input Transmitter
Regular price
£49.99
Sale price
£49.99
Regular price
Unit price
Information

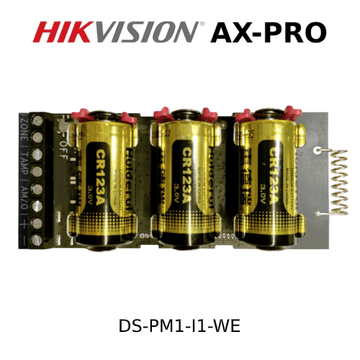

HIKVISION AX PRO Series DS-PM1-I1-WE Single Input Transmitter
AX PRO wireless single input transmitter offers a connection of third party wired detectors like outdoor PIR, to AX PRO alarm system, Supports tamper alarm, anti-masking, alarm output and can provide power (3.3V) to the detector.
Features
- Small size design, which can be put into wired detector easily
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With one tamper input and one PGM, can be used as zone input or alarm outpout
- With 3.3v voltage output, can be used to power up external wired detector
- Detection of device removal by accelerometer
Specification
- Hardware features
- Serial port1
- Power switch1
- Alarm input1 Alarm, 1 Tamper
- Alarm output1 PGM, AM/Output
- 3.3v Output1, up to 10mA
- Electrical characteristics
- Power supply3 CR123
- Operation humidity10% to 90%
- Operation temperature–10°C to 55°C
- Power consumption
Quiescent current: 40.29 uA
Max current: 47.85 mA
Voltage: 3 VDC
- Battery life spanUp to 5 years (standby time)
- Wireless transmission
- RF frequency868 MHz
- RF methodTwo-way communication
- RF modulation2GFSK
- RF distance1700 m
- Display
- Indicator3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red)
- General
- Installation methodPut inside wireless ready detector
- Dimension(WxHxD)102 mm × 41 mm × 20 mm
- Weight35 g (without battery), 90 g (with battery)
