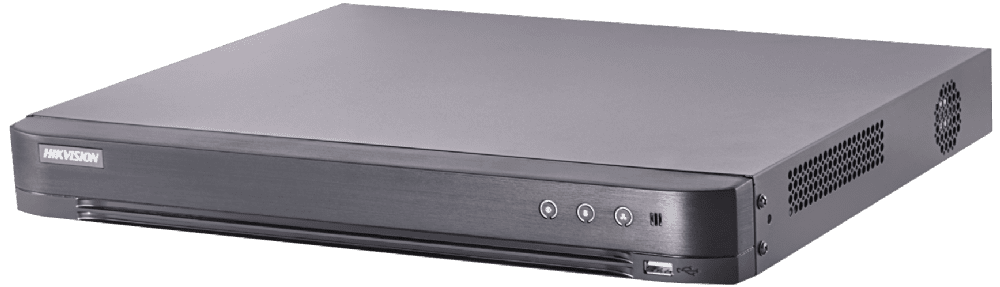

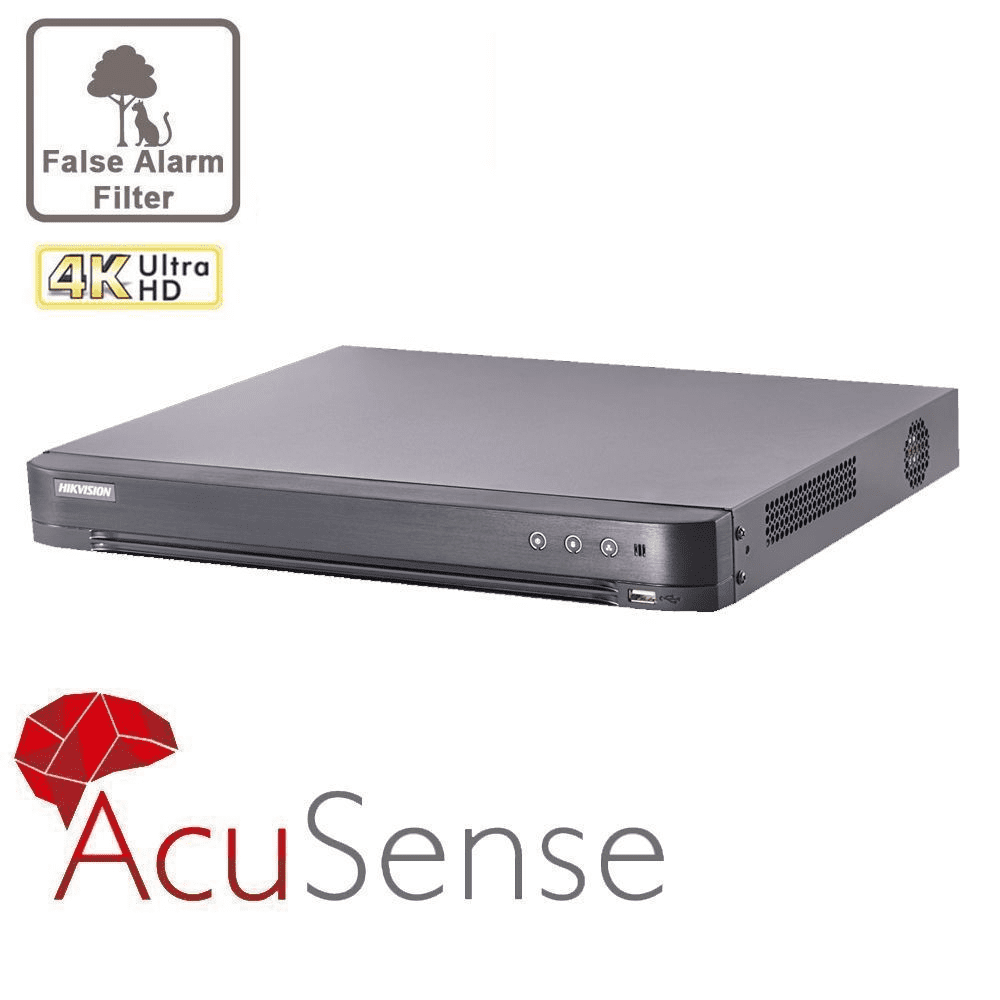

Hikvision 8MP Lite iDS-7204HUHI-K1/4S (B) AcuSense Smart Filter 4 Ch Turbo 5.0 DVR
Hikvision 8MP Lite iDS-7204HUHI-K1/4S (B) AcuSense Smart Filter 4 Ch Turbo 5.0 DVR
Hikvision 8MP Lite iDS-7204HUHI-K1/4S (B) AcuSense Smart Filter 4 Ch Turbo 5.0 DVR
iDS-7204HUHI-K1/4S is Hikvision's 4 channel AcuSense false alarm reduction professional DVR. The HD analogue recorder supports up to 4 channels of smart filtering for human body detection and vehicles thus reducing false alarms. The recorder supports the following HD analogue cameras: 8MP TVI, 5MP AHD, 4MP CVI or CVBS formats.
The recorder supports up to 4 x HD analogue cameras with BNC connector plus it can add up to 2 x IP cameras (additional POE switch is required - not included) or 8 x IP cameras only in pure IP mode. It supports the latest H.265 Pro+ compression for a significant increase in data storage.
Connection to the mobile is a breeze with Hik-Connect app (free) and simple bar code scanning setup.
Features
4-ch 5 MP 1U H.265 AcuSense DVR
- 4 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction by human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected
Specification
- Recording
- Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution
Main stream:
5 MP@12fps/4 MP@15fps/3 MP@18fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
- Video bit rate32 Kbps to 10 Mbps
- Dual streamSupport
- Stream typeVideo, Video & Audio
- Audio compressionG.711u
- Audio bit rate64 Kbps
- Video and Audio
- IP video input4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS inputPAL/NTSC
- HDMI/VGA output
1-ch, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output1-ch, RCA (Linear, 1 KΩ)
- Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
- Synchronous playback32
- HDTVI input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Network
- Remote connections32
- Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary interface
- SATA1 SATA interface
- CapacityUp to 10 TB capacity for each disk
- Alarm in/out4/1
- USB interface2 × USB 2.0
- Serial interfaceRS-485 (half-duplex)
- General
- Power supply12 VDC
- Working temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working humidity10% to 90%
- Weights (without HDD)≤ 1.16 kg (2.6 lb)
- Consumption(without HDD)≤ 10 W
- Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
