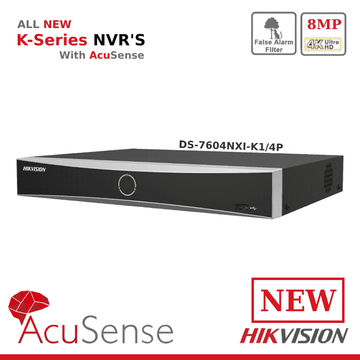

Hikvision 8MP DS-7604NXI-K1-4P Pro Series 4-Channel 4K 1U 1 SATA 4-PoE In-Out NVR
Hikvision 8MP DS-7604NXI-K1-4P Pro Series 4-Channel 4K 1U 1 SATA 4-PoE In-Out NVR
Regular price
£110.00
Sale price
£110.00
Regular price
Unit price
Information
Hikvision 8MP DS-7604NXI-K1-4P Pro Series 4-Channel 4K 1U 1 SATA 4-PoE In-Out NVR
This NVR offers you an economic solution for Small and medium IP based CCTV installations. It supports cameras up to 8 megapixels resolution. This NVR includes a 4 port Power over Ethernet (PoE) switch onboard making it a simple plug and play solution for camera connection. This NVR is Onvif compliant allowing maximum integration with 3rd party products. Audio recording, talkback function and camera output relay control over Network (Please note, functions are dependent on cameras with support for features, frame rate and resolution.
Features
- Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
- Adopt Hikvision AcuSense technology to minimize manual effort and security costs
Specification
- Video and Audio
- IP Video Input4-ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (25 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 36 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- Capacity1TB SSD (pre-installed)
- USB InterfaceRear panel: 2 × USB 2.0
- General
- Power Supply48VDC，1.04A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
- Weight≤ 0.39 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
