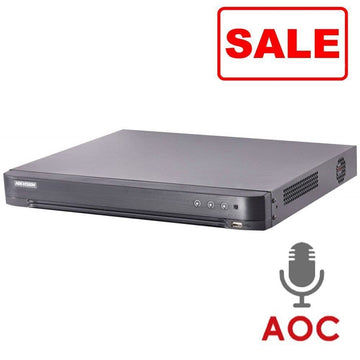

Hikvision 4MP Lite iDS-7204HQHI-K1-2S(C) 4 Channel Turbo DVR W/ AOC
Hikvision 4MP Lite iDS-7204HQHI-K1-2S(C) 4 Channel Turbo DVR W/ AOC
Hikvision 4MP Lite iDS-7204HQHI-K1-2S(C) 4 Channel Turbo DVR W/ AOC
AOC - AUDIO OVER COAX
Audio over coax (AoC) the audio from the built-in mic camera is transmitted via the coax cable to a AoC supported DVR which means running fewer cables and faster setup, this means no separate audio cable is needed.
Features
- 4 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 6 network cameras can be connected
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 2-ch
- Facial Detection
- Facial Detection and Capture
1-ch human face capture (HD analog camera)
- Video and Audio
- IP Video Input
1-ch (up to 5-ch)
Enhanced IP mode on:
2-ch (up to 6-ch), each
up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- CVBS InputPAL/NTSC
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz,
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz,
- Video Output ModeHDMI/VGA simultaneous output
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback4-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream Type
Video, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Remote Connection32
- Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,
ONVIF
- Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- Serial InterfaceRS-485 (half-duplex)
- SATA1 SATA interface, up to 10 TB capacity for each disk
- Alarm In/OutN/A
- USB Interface
2 × USB 2.0
- General
- Power Supply12 VDC, 1.5 A
- Consumption≤ 18 W (without HDD)
- Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
- Weight≤ 1.16 kg (without HDD，2.6 lb)
