Hikvision 4-Port DS-3E0505HP-E Gigabit 1000Mbps Unmanaged PoE+ Switch
Regular price
£44.81
Sale price
£44.81
Regular price
Unit price
Information

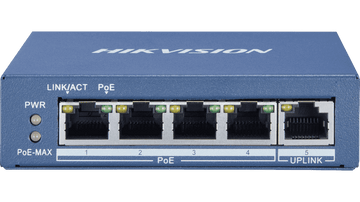

Hikvision 4-Port DS-3E0505HP-E Gigabit 1000Mbps Unmanaged PoE+ Switch
A POE Switch provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. DS-3E0505HP-E is a 4 port unmanaged switch providing 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power to all IEEE 802.3af/at compliant devices. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.
Features
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port and 1 × gigabit RJ45 port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
- Dimensions: 121x 88.1 x 27.6mm
Specification
- General
- ShellMetal material, fan-free design
- Net Weight0.27 kg (0.59 lb)
- Dimensions (W × H × D)121.0 mm × 88.1 mm × 27.6 mm (4.76'' × 3.47'' × 1.09'')
- Gross Weight0.43 kg (0.95 lb)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 1.35 A
- Max. Power Consumption65 W
- Power Consumption in Idle5 W
- Installation ModeDesk-Mounted
- Surge Protection6 KV
- Network Parameters
- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port
Hi-PoE: Port 1
PoE: Ports 2 to 4
- Max. Port Power
Port 1: 60 W
Ports 2 to 4: 30 W
- PoE Power Budget60 W
- Dialing Function
- Long Range
Ports 3 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
- Port IsolationPorts 1 to 4: port isolation mode to improve network security.
- PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU)
