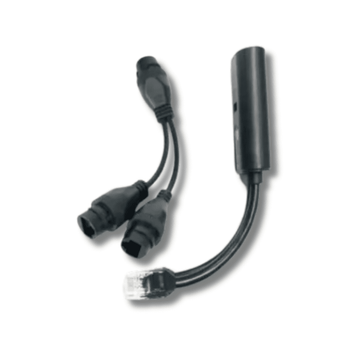

Haydon HAY-POE-MULTI-IP-F PoE Port Multiplexer

Haydon HAY-POE-MULTI-IP-F PoE Port Multiplexer

• Connects two IP/PoE devices to a PoE switchor NVR using a single Cat5/6 cable.

• Provides up to 15.4W to each of the 2devices on type 1 - POE IEEE 802.3af.

• Provides up to 25.5W to each of the 2devices on type 2 - POE+ IEEE802.3at

• Switchable between Type B (UK Standard) &Type A (USA & Asia)

• Reduces installation costs and time

• Compatible with both IEEE 802.3af and IEEE802.3at

• No POE injector or psu required

• Low cost and easy to use (Plug N play).

• Mode A power and data on pins 1&2 (-) andpins 3&6 (+) (USA & Asia)

• Mode B power on pins 4&5 (+) and pins 7&8(-) with data on pins 1&2 and 3&6 (UK &Europe)

• Female Connectors

• IP68 (Transmitter Only)
