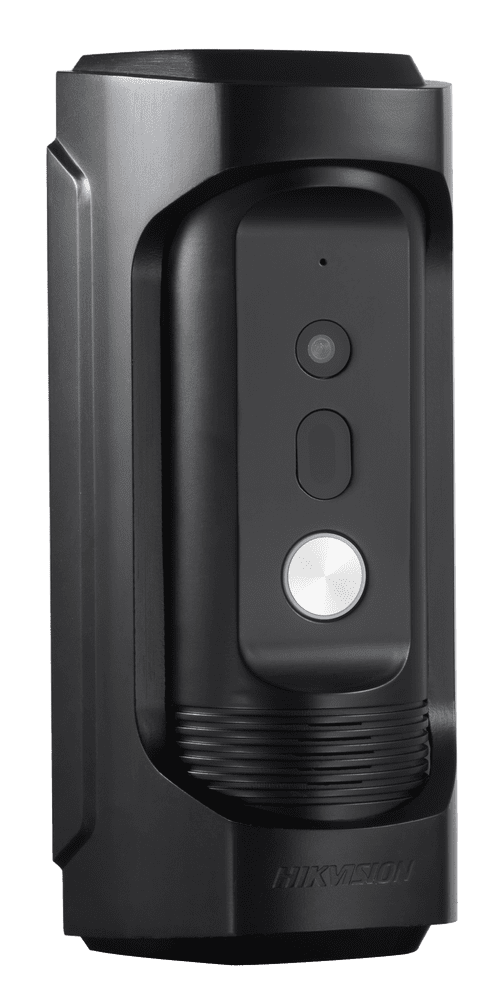

Gen2 2MP DS-KB8113-IME1 IP Video Intercom Vandal-Resistant Door Station
Regular price
£90.83
Sale price
£90.83
Regular price
Unit price
Information
Gen2 2MP DS-KB8113-IME1 IP Video Intercom Vandal-Resistant Door Station
Only available for qualified door entry system installers -
IP Video intercom door station camera Hikvision DS-KB8113-IME1. Supporting the communication with the master station, the client software, the app, and indoor stations Night vision, 2 megapixel integrated camera for live view, PoE. Camera can be integrated in to a video surveillance system.
- Communicates with Master Station and Indoor Station
- Access Control Function Supports Multiple Door Opening Modes
- 3 m IR Range
- High-Performance SOC Processor
- IK9 and IP66
- Power-over-Ethernet (IEEE 802.3af Standard POE)
Features
- Video intercom function.
- High-performance embedded SOC processor.
- HD video surveillance Main stream: 1080p@30fps, 720p@30fps
- Motion detection supported.
- Self-adaptive light supplement, IR night vision.
- Door magnetic alarm supported.
- Auto-uploading captured pictures to FTP or iVMS-4200 Client while unlocking the door.
- Noise suppression and echo cancellation.
- Remote upgrade, batch setting functions.
- IK 09 and IP65 standard, fully protected, suites indoor and outdoor use conditions.
- Debugging port 1 Alarm input 1 Grounding 1
Specification
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 M
- RAM256 M
- CPUEmbedded MCU Processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution
Main stream : 1920 × 1080
Sub stream : 640 × 480
- FOV
Horizontal:95°
Vertical:54°
- WDRSupport
- Supplement lightIR supplement
- Video compression standardH.264
- Audio parameters
- Audio compression standardG.711 U，G.711 A
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (More than 80 dB within 30 cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Face capacity/
- Card capacity/
- Linked indoor station capacity1
- Sub door station capacity16
- Network parameters
- Network protocolTCP/IP, RSTP, SIP
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-Fi standard/
- Bluetooth version/
- 3G/4G standard/
- Device interfaces
- Alarm input1
- Debugging port1
- Network interface1
- Lock control1 (1 relay, max to 30 VDC, 2 A)
- Power interface1
- General
- Button1
- Power supply
IEEE802.3af, standard PoE or
12 VDC
- InstallationSurface mounting
- Power consumption＜ 10 W
- Working temperature-30° C to +50° C(-22° F to 122° F)
- Weight
Gross Weight: 0.992 kg
Net Weight: 0.795 kg
- Working humidity10% to 90%
- Protective levelIP65, IK09
- Dimensions (L x W x H)161.85 mm × 74.13 mm × 53.2 mm(6.37" × 2.92" × 2.09")
- Battery/
- LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Arabic,Turkish,Vietnamese,Hungarian,Dutch,Romanian,Czech,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovakia,BrazilianPortuguese
- Application environmentOutdoor and Indoor
