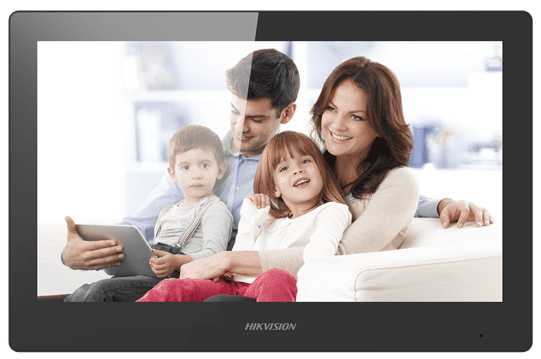

DS-KH8520-WTE1 Video Intercom Indoor Station with 10-Inch Touch Screen
The Hikvision DS-KH8520-WTE1 is a 10-inch touch screen video intercom indoor station which supports wireless network and allows users to see live videos from their door station and linked cameras.
Supported by a display resolution of 1024 × 600 and dimensions of 254 mm(W)× 166 mm(H)× 14.7 mm(D) it makes this intercom easy to use. With a larger screen, users can see more and notworry about missing anything.
This intercom comes with echo cancellation and noise suppression, giving users a clearer sound. It also has built-in omnidirectional microphone audio input and built-in loudspeaker audio output.
Powered by a 12V DC power supply or standard PoE, this is easy to set up. It is operated by Embedded Linux operation system.
It captures images and stores messages on a TF card, allowing up to 32g of storage. Users can also use the remote unlocking feature by using the client software or the mobile client.
Features include:
- New UI V2.0: User friendly design
- Supports wireless network
- 10-inch colourful touch screen with resolution 1024 × 600
- PoE Powered
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
Specification
- Display parameters
- Size10.1-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT screen
- Video parameters
- LensNot supported.
- FOV/
- Pixel/
- Audio parameters
- Audio qualityNoise suppression and echo cancellation
- Network parameters
- Communication protocolTCP/IP, SIP, RTSP
- Wired network10/100 Mbps self-adaptive
- Wi-FiWi-Fi 802.11 b/g/n
- Bluetooth/
- Zigbee/
- Device interfaces
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- Power interface1
- General
- Button0
- InstallationSurface mounting
- Indicator0
- Weight
1118 g (with packaging)
660 g (without packaging)
- Protective level/
- Power supply method
IEEE802.3af, standard PoE
12 VDC/1 A
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimensions254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89")
- Battery/
- Application environmentIndoor
- Power consumption
≤ 6 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
