DS-KH6320-WTE1-W WHITE IP Video Intercom Pro Indoor Station with 7-Inch Touch Screen Hikvision
DS-KH6320-WTE1-W WHITE IP Video Intercom Pro Indoor Station with 7-Inch Touch Screen Hikvision
Quick Overview

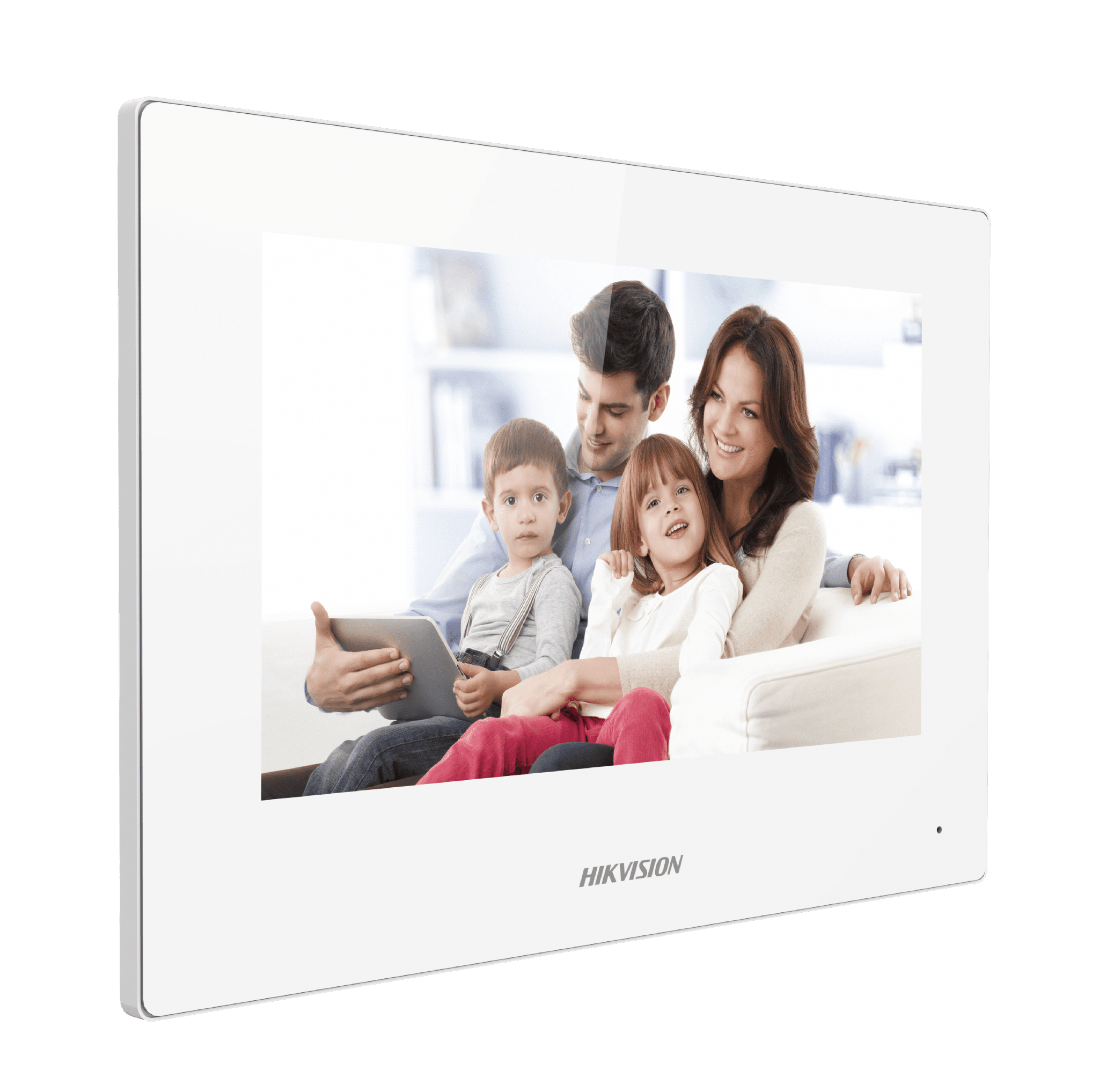

The Hikvision DS-2KH6320-WTE1 is a 7-inch touch screen video intercom indoor station which supports wireless network.
Supported by a TF card, users can store messages and capture images, with up to 30g storage.
This intercom comes with built-in omnidirectional microphone audio input and Built-in loudspeaker audio output. It also comes with noise suppression and echo cancellation, giving users a clearer sound.
It has a display resolution of 1024 × 600, and dimensions of 200 mm (W) × 140 mm (H) × 15.1 mm (D) making this intercom a great size, its not too small so users can still see clearly but isn't too big so it looks out of place.
The DS-KH6320-WTE1 is operated by Embedded Linux Operation System. It is powered by either a 12V DC power
Specification
- System parameters
- Operation systemLinux
- ROM32 MB
- RAM128 MB
- ProcessorEmbeded high performance processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT
- Resolution1024 × 600
- Video parameters
- Lens/
- Resolution/
- FOV/
- Wide dynamic range (WDR)/
- Video compression standard/
- Focal length/
- Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio compression standardG.711 U、G.711 A、G.722.1
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Message capacity
TF card inser
ted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice capacity200
- Linked indoor extensions capacity16
- Linked doorphone capacity17
- Linked network camera capacity16
- Network parameters
- Network protocolTCP/IP, SIP, RTSP
- Wi-Fi2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth/
- 3G/4G/
- Zigbee/
- Device interfaces
- Alarm input8
- Network interface1 RJ-45 10/100 Mbps self-adaptive
- TAMPER/
- RS-4851 RS-485 (Half duplex)
- USB/
- TF cardSupport TF card, up to 128 G
- Alarm output2
- Lock control2 relays, Max. 30 VDC 0.3 A
- General
- Button/
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 355 g (0.8 lb)
Gross weight: 683 g (1.5 lb)
- Protective level/
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
- Battery/
- Application environmentIndoor
- Power consumption≤ 5 W
- LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
