DS-KD8003-IME1 IP Modular Surface Video Intercom Door Station
Quick Overview

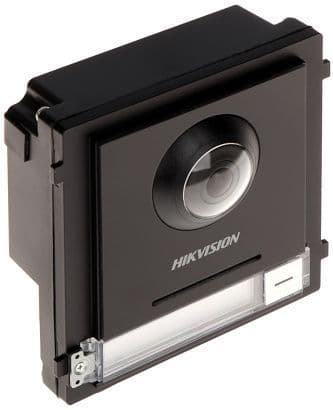

The Hikvision DS-KD8003-IME1/Surface is a 2MP fisheye video intercom module door station that comes with the surface mounting accessory DS-KD-ACW1 already attached. It also comes with wide dynamic range (WDR), IR supplement light and night visibility.
As part of Hikvision's 2nd generation, this video intercom comes with bigger name-tag customization, low illumination, noise suppression and echo cancellation.
Armed with 180° horizontal field of view, 96° vertical field of view, IP65 weather-proof housing, a working temperature of -40°C to 60°C allowing it to be perfect for outdoor use.
Powered by either 12V DC or standard PoE, making it quick and easy to install.
Key Features
- 2 MP HD video intercom function.
- Low illumination.
- Noise suppression and echo cancellation.
- Fisheye camera with IR supplement light.
- H.264 video compression.
- Tampering alarm supported.
- Access control function.
- Nametag customization.
- Supports sub-modules access (max. 8).
- Easy to and extend
- Cover and installation frame are made of aviation aluminum.
Specification
- System parameters
- ProcessorEmbedded MCU Processor
- Operation systemEmbedded Linux Operation System
- Video parameters
- Supplement lightIR Supplement
- Video compression standardH.264
- Audio parameters
- Audio inputBuilt-in Omnidirectional Microphone
- Audio outputBuilt-in Loudspeaker(More than 85 dB within 20 cm )
- Audio compression bitrate64 Kbps
- Audio qualityNoise Suppression and Echo Cancellation
- Network parameters
- Ethernet10/100 Mbps Self-Adaptive Ethernet
- Network protocolTCP/IP, RTSP
- Device interfaces
- Alarm inputTampering Alarm
- I/O input4
- I/O output2
- General
- Power supply12 VDC/PoE ( IEEE 802.3af)
- Power consumption4 W
- Working temperature-40° C to +55° C (-40° F to 131° F)
- Working humidity10% to 95%
- Protective levelIP65
- Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
