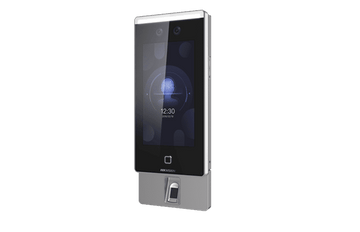

DS-K1T671TMFW Hikvision Face Recognition Terminal 7 LCD Touch Screen With Fingerprint and Mifare
DS-K1T671TMFW Hikvision Face Recognition Terminal 7 LCD Touch Screen With Fingerprint and Mifare
Regular price
£813.91
Sale price
£813.91
Regular price
Unit price
Information
Hikvision Face Recognition Terminal 7 LCD Touch Screen MiFare Fingerprint, 2MP Camera, 20,000 faces, 5,000 fingerprints, 50,000 cards and 100,000 event capacity, Interfaces: Network × 1, RS-485 × 1, Wiegand × 1, USB × 1, alarm output × 1, alarm input × 2, lock ×1, door contact × 1, exit button x 1, Tamper x 1, WiFi, IP65, 12VDC/3A, 5 year warranty
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- 7-inch touch screen, 2 Mega pixel wide-angle lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3m to 3m
- Suggested height for face recognition between 1.4 m and 1.9 m
- Deep learning algorithm
- 50,000 face capacity, 5,000 fingerprint capacity, and 100,000 event capacity
- Face anti-spoofing
- Multiple authentication modes
- Face recognition duration 0.2 s/User; face recognition accuracy rate 99%
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Manage, search and set device data after logging in the device locally
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Watchdog design and tamper function
- Audio prompt
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, and Vietnamese
- Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
- Configuration via web browser
Specification
- System
- Operation systemLinux
- general
- FOVHFOV= 46°；VFOV=87°
- Display
- Dimensions7-inch
- TypeLCD
- Operation methodCapacitive touch screen
- Video
- Pixel2 MP
- Lens2
- Audio
- Tone qualityNoise suppression and echo cancellation
- Network
- Wired network10 M/100 M/1000 M self-adaptive
- Wi-FiSupport
- Interface
- Network interface1
- RS-4851
- Wiegand1
- Lock output1
- Exit button1
- Door contact input1
- IO input2
- IO output1
- Power interface2-pin
- TAMPER1
- USB2
- Capacity
- Card capacity50,000
- Face capacity50,000
- Fingerprint capacity5000
- Event capacity100,000
- Authentication
- Card typeM1 card
- Card reading frequency13.56 MHz
- Card reading distance0 to 5 cm
- Face recognition duration＜ 0.2 s per person
- Face recognition accuracy rate≥ 99%
- Face recognition distance0.3 to 3 m (Without face mask)
- General
- Power supply method2 pin connecter
- Power supply12 VDC/ 2 A
- Working temperature-30 ℃ to 60 ℃ (-22 °F to 140 °F)
- Working humidity10 to 90％ (No condensing)
- Dimensions290 mm × 116.5 mm × 33 mm (11.4" × 4.6" × 1.3")
- Protective levelIP65
- InstallationWall mounting
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- PlatformHik-ProConnect and HikCentral Professional
- Function
- Face anti-spoofingSupport
- AdvertisementSupport
- Audio promptSupport
- Time synchronizationSupport
