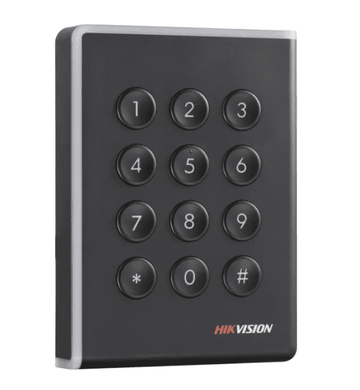

DS-K1108MK Hikvision Internal Keypad and Mifare Card Reader
Regular price
£41.81
Sale price
£41.81
Regular price
Unit price
Information
Hikvision Internal Mifare Proximity Card Reader
The attractively designed DS-K1108MK proximity card reader has been designed for use with the Hikvision range of door controllers or third party Wiegand controllers. Access can be granted via a keypad or a compatible MiFare :125KHz card or keyfob. The reader can be fitted to a single gang back box and wired via 4 core cable for RS485 or 8 core cable for Wiegand protocols. The unit has an LED status indicator and an audible beeper to let the user know that access has been granted. The durable outer case is tamper proof and the inbuilt watchdog program ensures constant reliability.
Features Include:
- 32-bit high-speed processor
- Support RS485 and Wiegand (w26, w34) protocol
- Build-in ID card reading module (Frequency:125KHz). Supports reading ID card NoDS-K1108E/DS-K1108EK
- Supports MiFare card reading(meet the standards of )ISO 14443-A , including card No.and content reading
- Tamper-proof function
- Build-in buzzer and LED for status indication
- Online upgrading
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the
basic function of the terminal
Specification
- System
- Processor32-bit
- Interface
- RS-485Support
- WiegandSupport, set via DIP switch
- Authentication
- Card reading distance≤50mm (≤1.97")
- General
- IndicatorPower/Status
- Power supplyDC 12V
- Power consumption≤2W
- Working temperature-20°C to +65°C (-4°F to +149°F)
- Working humidity10% to 90% (Non Condensing)
- Protective levelIP 65
- Dimensions123mm × 88mm × 21mm (4.84" × 3.46" × 0.83")
- InstallationWall Mounting with/without Gang Box
- ApprovalRadio Frequency Standard: ISO 14443-A
- KeypadPhysical Key/No Key
- BuzzerSupport
- Function
- ID settingsvia DIP Switch
