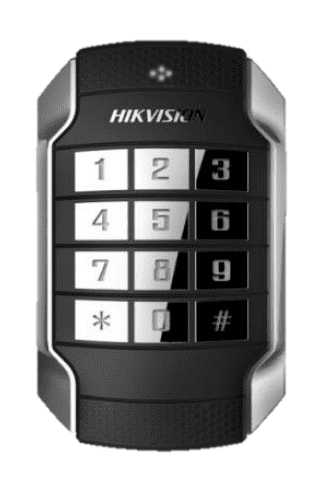

DS-K1104MK Hikvision External Vandal Resistant Card Reader with keypad
Regular price
£70.09
Sale price
£70.09
Regular price
Unit price
Information
This is the card reader for the Hikvision Access control system. Hikvisions access control systems can be integrated into CCTV systems to trigger recording. The access control systems are built with a number of anti-tampering functions such as car reading tampering, brute force entry, and blacklisted card users.
Key Features:
- PC + zinc-alloy material shell (material protection level is IK 10)
- Equipped with the 32-bit high-speed processor
- Built-in audible beeper
- Display the reader status with LED indicator
- DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- Online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- Dust-proof and water-proof design
- Read Mifare card and obtain the card No.
Specification
- Authentication
- Card reading frequency13.56MHz
- General
- Power supply12 VDC, ≤ 500 mA
- Power consumption≤ 2 W
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
- InstallationApplied for 86 & 120 Gang Box
- Weight≤ 0.52 kg (1.1 lb)
- Keypad
DS-K1104M: No keypad
DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
- BuzzerSupport
- Function
- ID settingsvia DIP Switch
