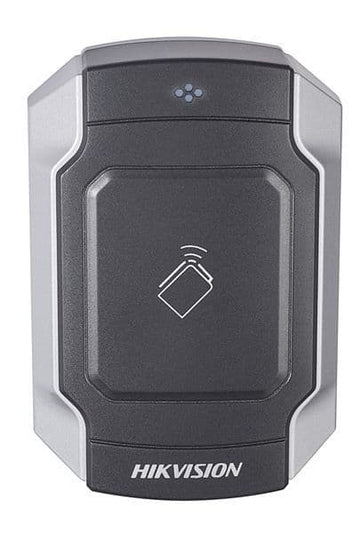

DS-K1104M Hikvision External Vandal Resistant Card Reader
Regular price
£55.50
Sale price
£55.50
Regular price
Unit price
Information
The DS-K1104M is Hikvisions vandal version of the proximity card reader. Ideal for use where there may be a risk of damage from vandalism or where the reader may be exposed to the weather as it benefits from enhanced protection IK10 and an IP65 ratings. These readers can be used in conjunction with the Hikvision door controllers and intercoms via RS485 control and can also be integrated with third party systems via Wiegand protocol.
Features Include:
- PC + zinc-alloy material shell (material protection level is IK 10)
- Equipped with the 32-bit high-speed processor
- Built-in audible beeper
- LED indicator
- DIP switch configuration
- RS485 and Wiegand (W26/W34) protocols
- Tamper protection
- Online upgrade capability (under the 485 communication mode), and card reader can downgrade to pre-upgrade status in case of an unsuccessful upgrade
- Watchdog function for self diagnostic and repair, to ensure reliable operation
- Dust and water resistance to IP65
- eads Mifare cards and obtains the card No.
Specification
- Authentication
- Card reading frequency13.56MHz
- General
- Power supply12 VDC, ≤ 500 mA
- Power consumption≤ 2 W
- Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
- InstallationApplied for 86 & 120 Gang Box
- Weight≤ 0.52 kg (1.1 lb)
- Keypad
DS-K1104M: No keypad
DS-K1104MK: Keypad with 12 keys (0 to 9, *, #)
- BuzzerSupport
- Function
- ID settingsvia DIP Switch
