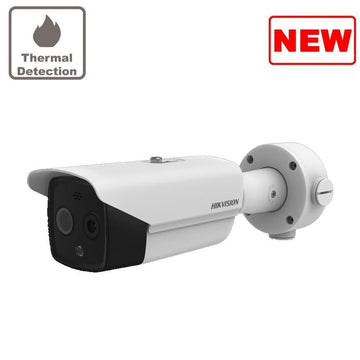

DS-2TD2617-6/V1 Hikvision 6.2mm fixed lens thermal network bullet camera with built in Bi-spectrum
Hikvision DS-2TD2617-6/V1 Thermal Bi-spectrum Network Bullet Camera equipped with built-in GPU which supports
intelligent behaviour analysis algorithm, can perform high precision VCA detection and real time alarm. It is applied to
perimeter defence and fire prevention purposes in critical infrastructures such as: community, villa, construction site,
factory and so on. The pre-alarm system helps you discover unexpected events immediately and protects you
from property loss.
Smart functions (Thermal Imaging)
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C,F#=1.1)
- Powerful behaviour analysis function based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
- Reliable temperature exception alarm function
- Advanced fire detection algorithm
- Bi-spectrum image fusion, picture in picture preview
Thermal Imaging Module Function
- 160 × 120 (resolution of output image is 320 × 240) resolution sensor, high sensitivity sensor, supports contrast adjustment
- Shutter adjustment in various modes
- 3D DNR, 15 palettes of colour adjustable, image detail enhancement
- Mirror image, digital zoom ×2, ×4, ×8, and local output
Specification
- Thermal Module
- Image sensorVanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval17μm
- Response Waveband8μm to 14μm
- NETDless than 40 mk (0.04°C), F#=1.1
- MRAD2.74 mrad
- Field of View25° × 18.7° (H × V)
- Min. Focusing Distance0.6 m
- ApertureF1.1
- Optical Module
- Max. Resolution1920 × 1080
- Image Sensor1/2.8” Progressive Scan CMOS
- Min. IlluminationColor: 0.0025 Lux @(F1.6, AGC ON), B/W: 0.0012 Lux @(F1.6, AGC ON)
- Field of View53° × 30°(H × V)
- WDR120 dB
- Shutter Speed1s to 1/100,000s
- Day & NightIR cut filter with auto switch
- Image Function
- Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel
- Picture in PictureCombines details of thermal and optical image PIP, overlay thermal image on optical image
- Smart Function
- VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy±8 °C (14.4 °F)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- Infrared
- IR DistanceUp to 40 m
- IR Intensity and AngleAutomatically adjusted
- Network
- Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720),Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
- Sub streamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 25fps (160 × 120 (the resolution of output image is 320 × 240))
- Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
- Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Simultaneous live viewUp to 20
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Integration
- Alarm Input2-ch inputs (0-5V DC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- Reset1 Reset Button
- Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
- SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256 G), support manual/alarm recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
- ClientiVMS-4200
- Web BrowserIE8-IE11, chrome41-chrome44, Firefox 30-Firefox51
- General
- Menu LanguageEnglish
- Power12 VDC± 20%,PoE (802.3at, class 4)
- Power Consumption12 VDC± 20%: max. 12W,PoE (802.3at, class 4)
- Work Temperature/Humidity-40 °C to 60 °C (-40 °F to 140 °F), 90% or less
- Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
- Dimensions352.4 mm × 113.5 mm × 114.7 mm (13.9 " × 4.5" × 4.5 ")
- WeightApprox. 1.5Kg (3.3lb)
